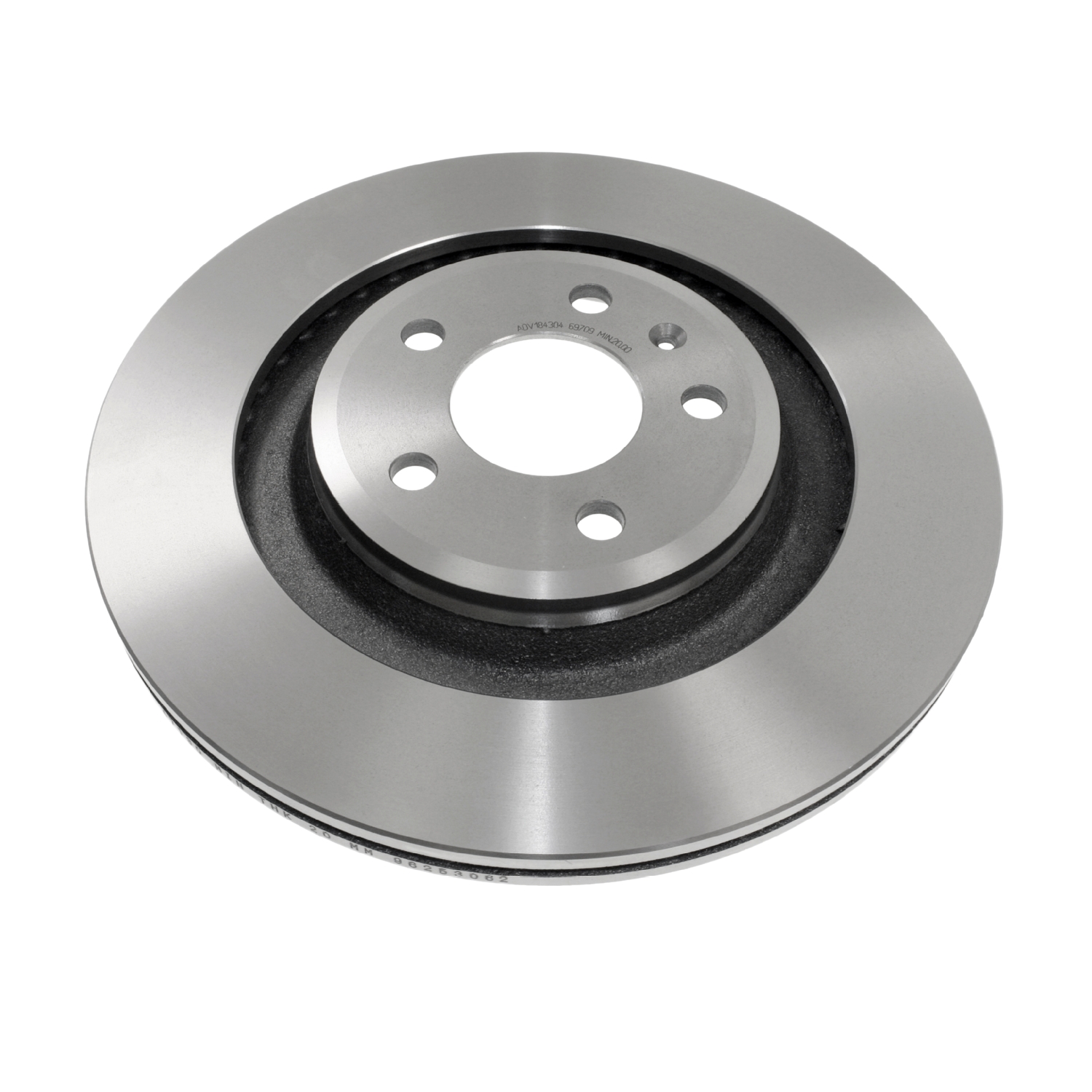

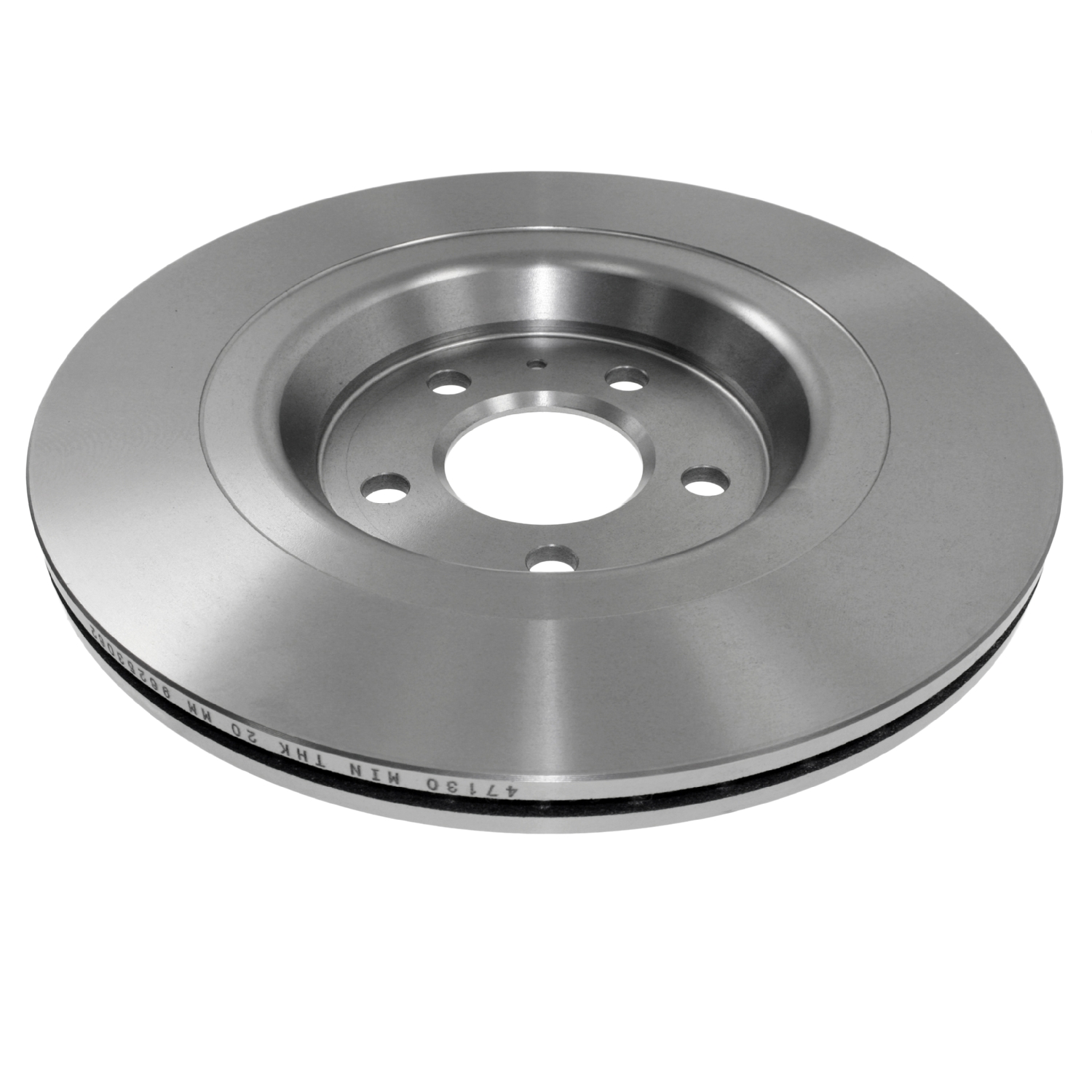

Rear Axle Brake Disc
BLUE PRINT ADV184304
Rear Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
22mm
Rim Hole Number
5-Hole
Number of mounting bores
1
Thickness [mm]
36mm
Outer Diameter [mm]
330mm
Bolt Hole Circle Ø [mm]
112mm
Surface
Coated
Brake Disc Type
internally vented
Fitting Position
Rear Axle
Minimum thickness [mm]
20mm
Centering Diameter [mm]
68mm
Weight [kg]
8kg
Observe service information
EAN / Barcode
5050063006292
OEM Part Numbers
- AUDI 4H0 615 601 D
- AUDI 4H0 615 601 H
- AUDI 4H0 615 601 K
- AUDI 4H0 615 601 Q
- AUDI 8K0 615 601 C
- AUDI 8W0 615 601 E
- AUDI 8W0 615 601 K
- AUDI 80A 615 601 C
- PORSCHE 95B 615 601 A
- VW 8W0 615 601 K
- VW (SVW) 4H0 615 601 K
