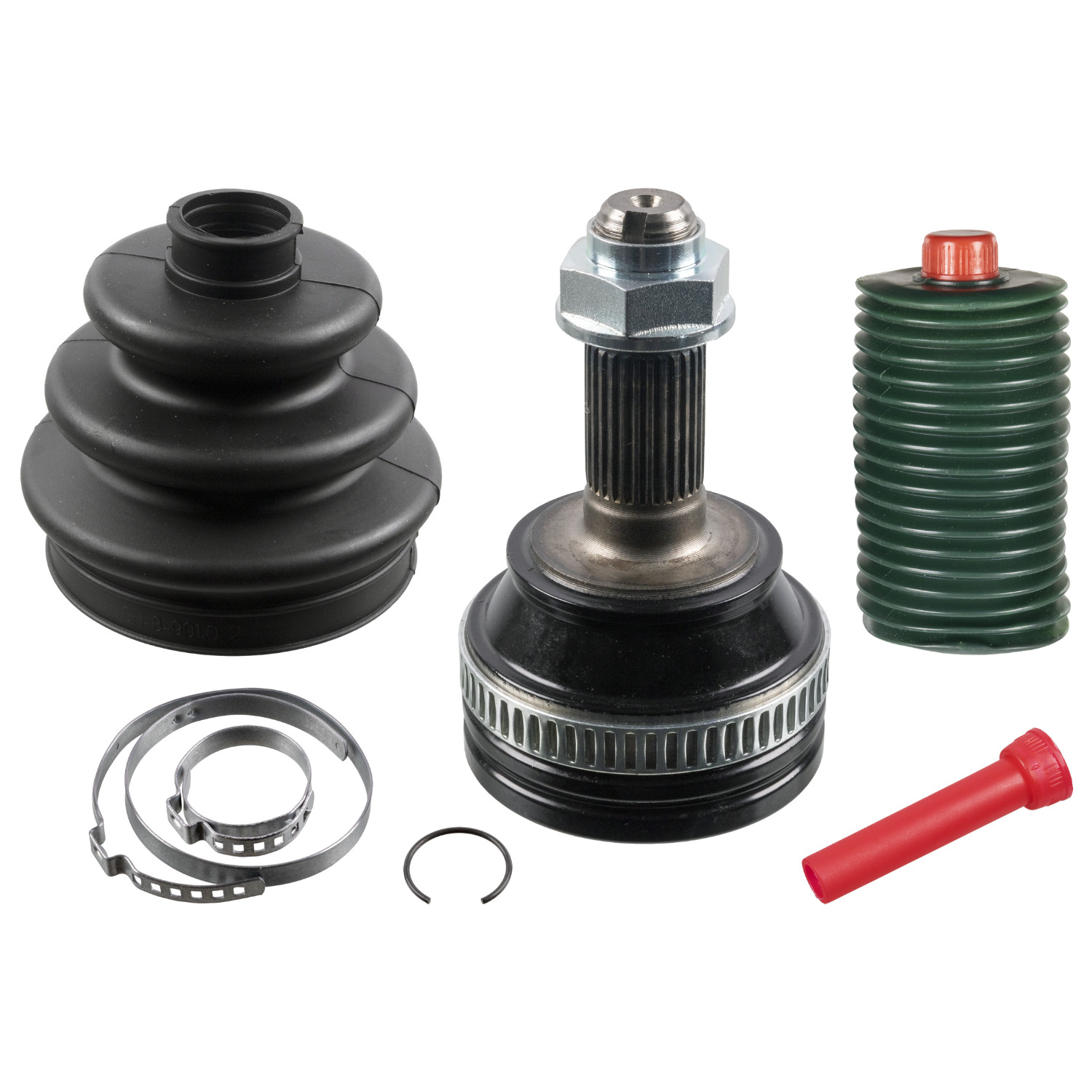

Joint Kit, drive shaft
BLUE PRINT ADJ138904
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Length [mm]
146mm
Outer Diameter [mm]
92mm
External Thread Size
M24 x 1,5
External Toothing wheel side
28
Internal Toothing wheel side
32
Number of Teeth, ABS ring
60
Sealing Ring Diameter [mm]
55.6mm
Weight [kg]
2.46kg
Observe service information
EAN / Barcode
5050063181968
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
OEM Part Numbers
- LAND ROVER TDJ100470
Product Downloads / PDF Files
Vehicle Fitments
