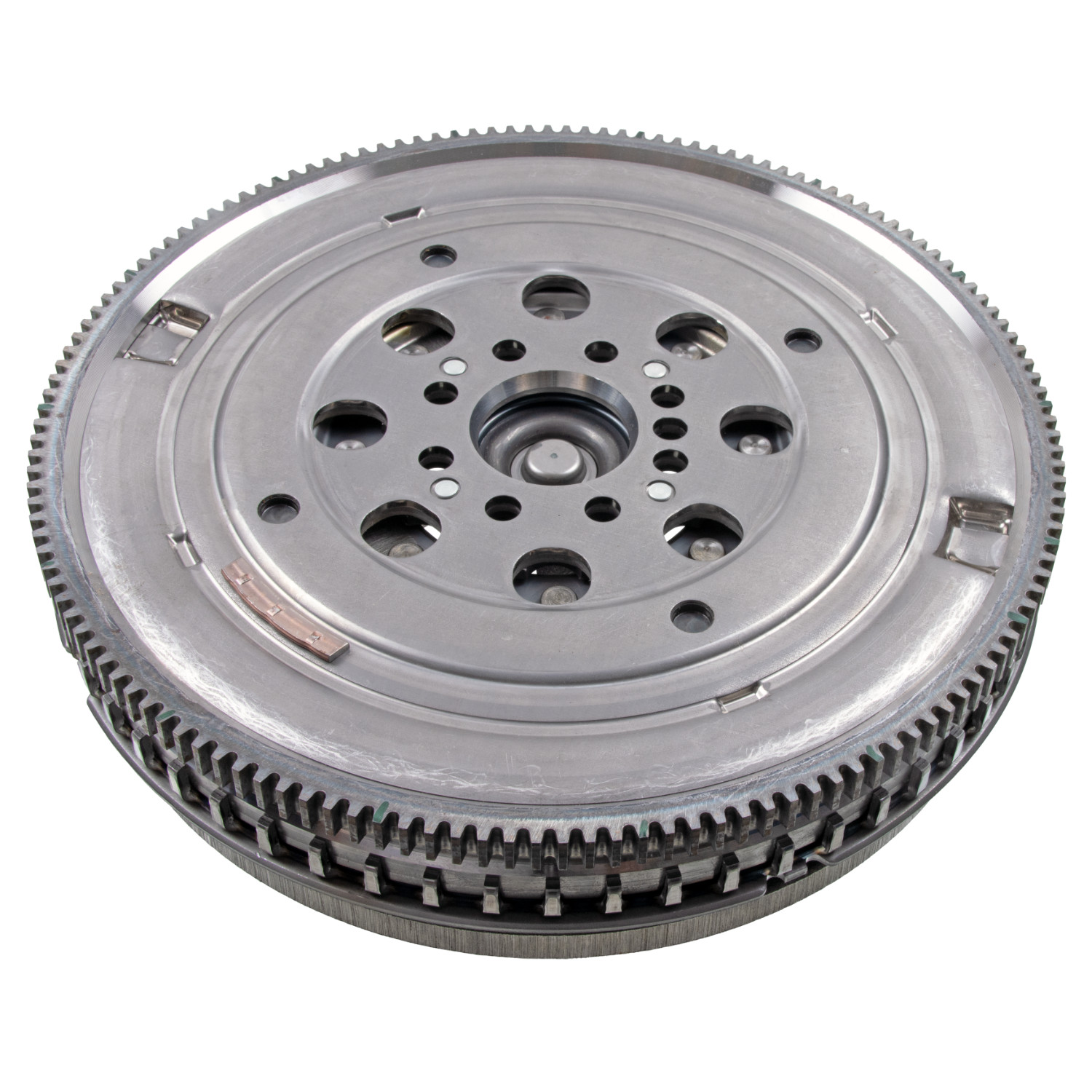

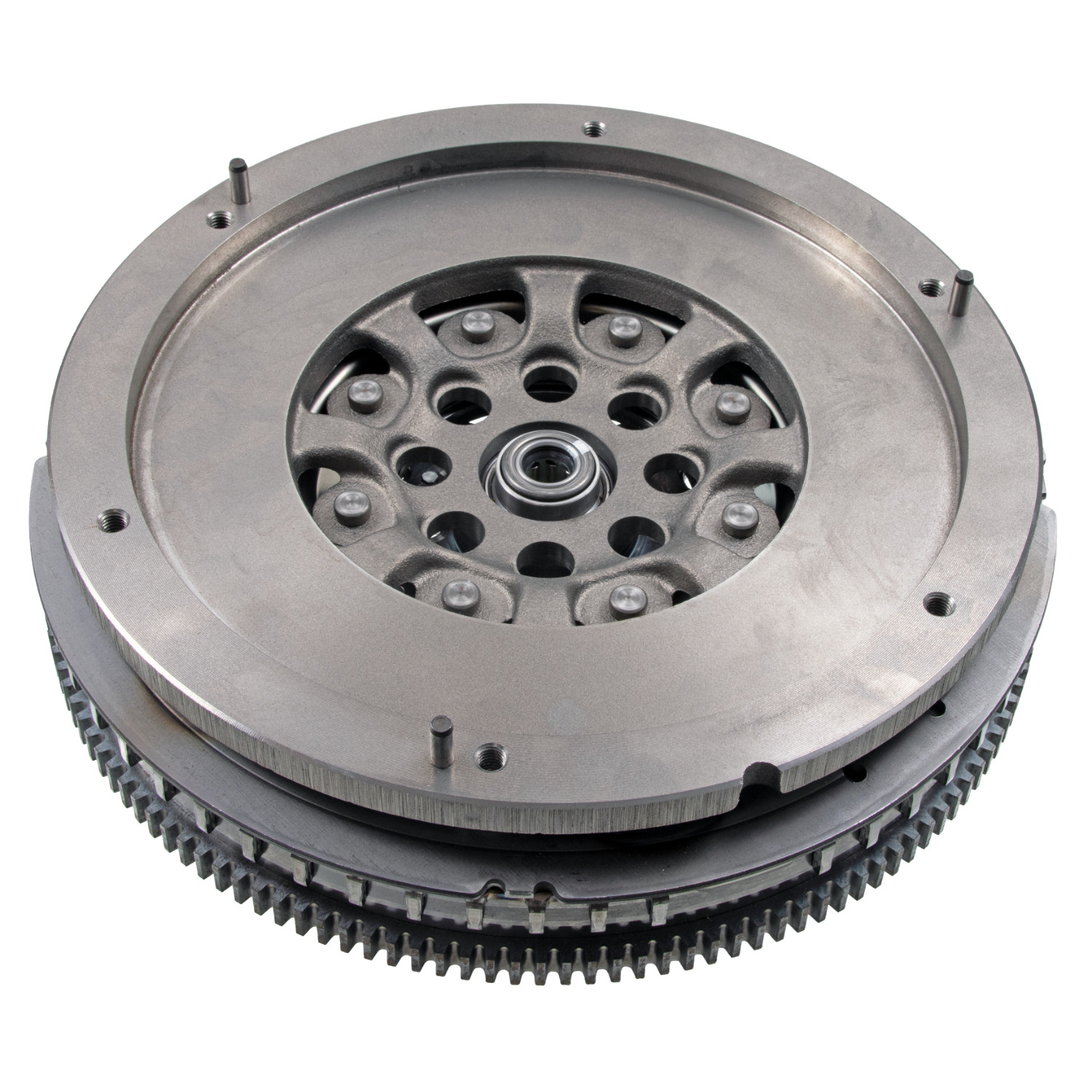

Flywheel
BLUE PRINT ADBP350014
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Related Parts / Accessories:
- 1 x ADBP780075 Screw Set, flywheel
Specifications
Hub Inner Diameter [mm]
46.08mm
Number of EDC bores/notches
1
Hub mounting bore diameter [mm]
10.5mm
Hub Outer Diameter [mm]
139mm
Pitch Circle Diameter, hub [mm]
75mm
Number of hub mounting bores
8mm
Pitch Circle Diameter, clutch pressure plate [mm]
260mm
Inner Diameter Tread [mm]
154mm
Clutch Pressure Plate Outer Diameter [mm]
244mm
Number of clutch pressure plate mounting bores
6mm
Number of Teeth
144
Weight [kg]
16.298kg
Observe service information
EAN / Barcode
5057746457501
OEM Part Numbers
- MERCEDES-BENZ A651 030 31 05
- MERCEDES-BENZ A651 030 40 05
- MERCEDES-BENZ A651 030 51 05
- MERCEDES-BENZ 651 030 31 05
- MERCEDES-BENZ 651 030 40 05
- MERCEDES-BENZ 651 030 51 05
