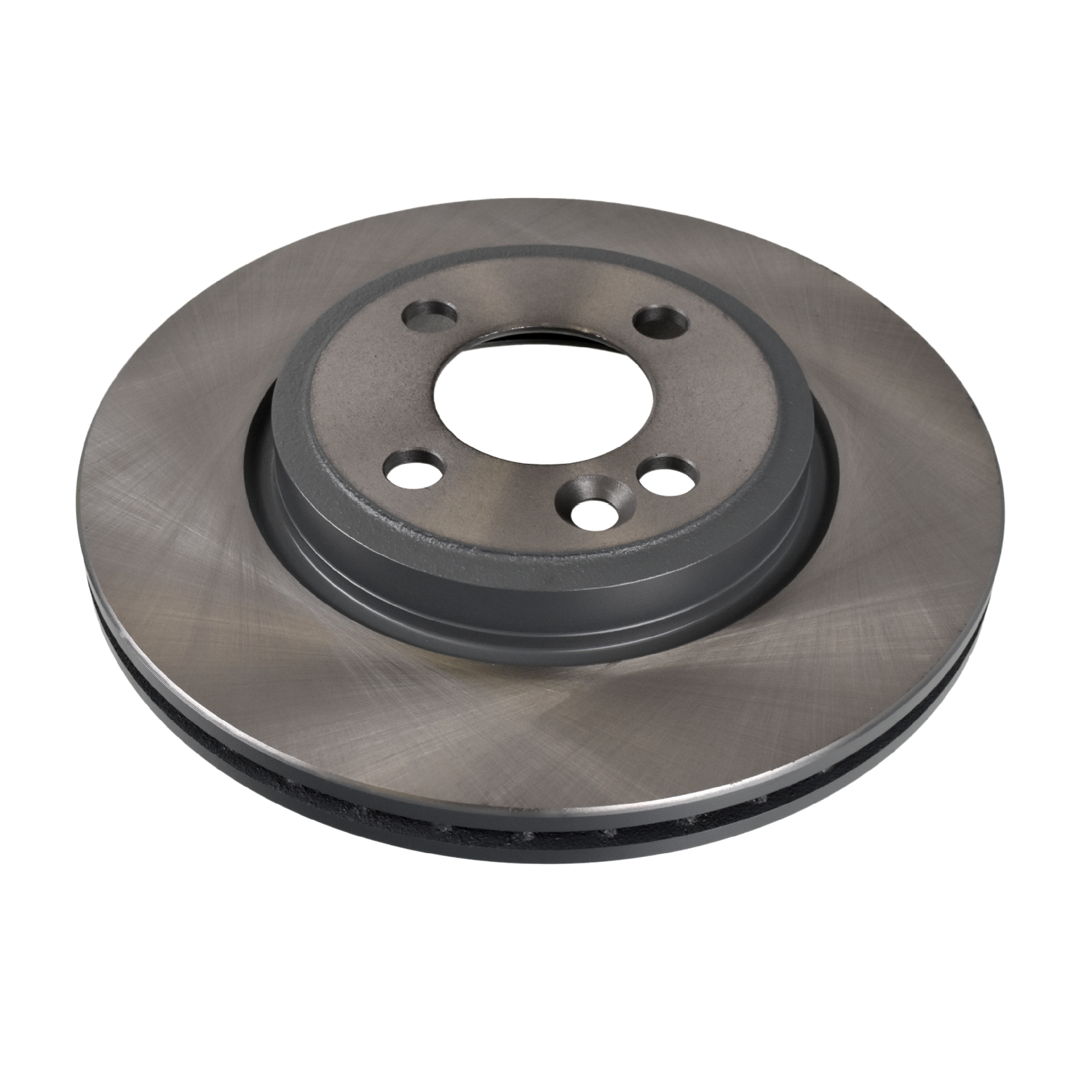

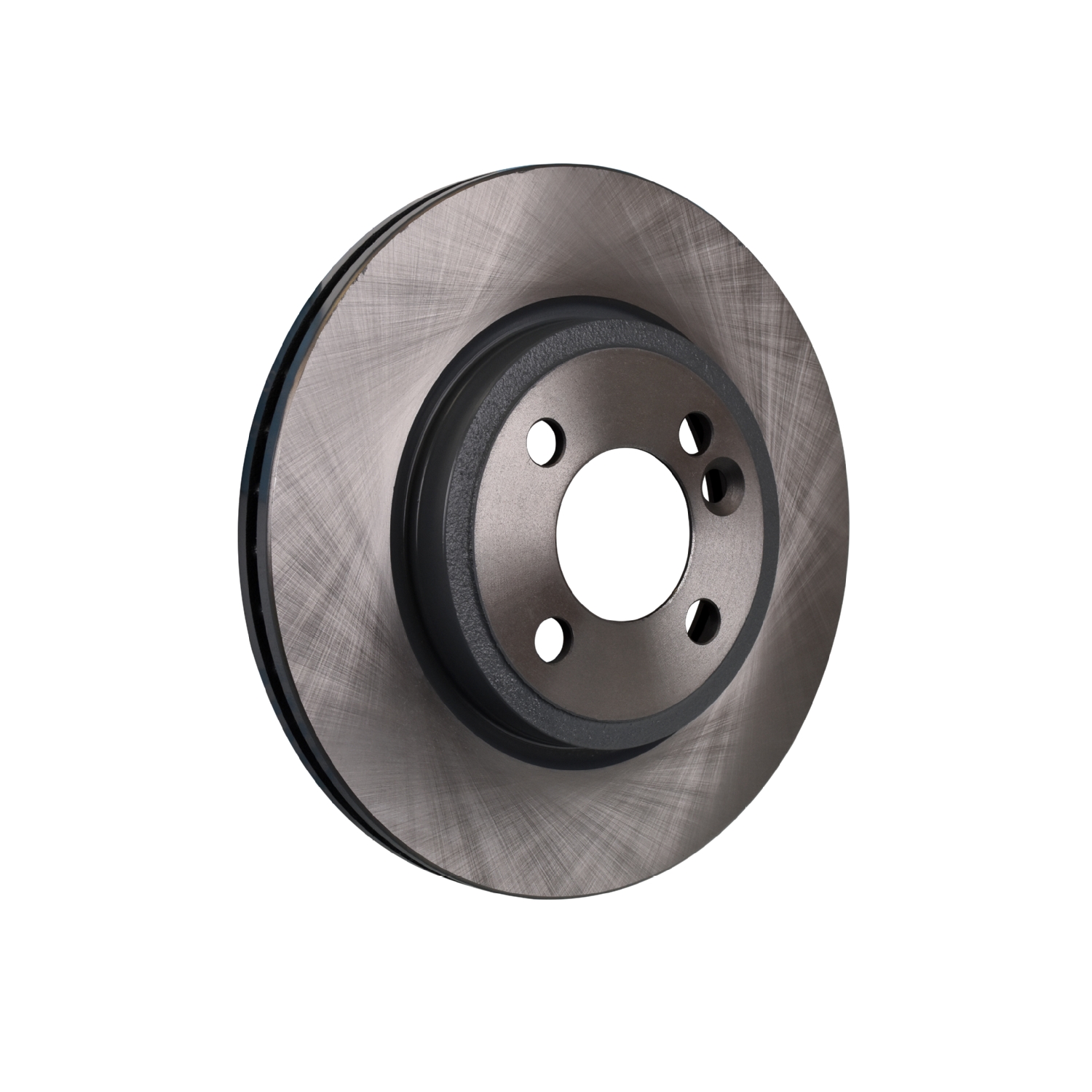

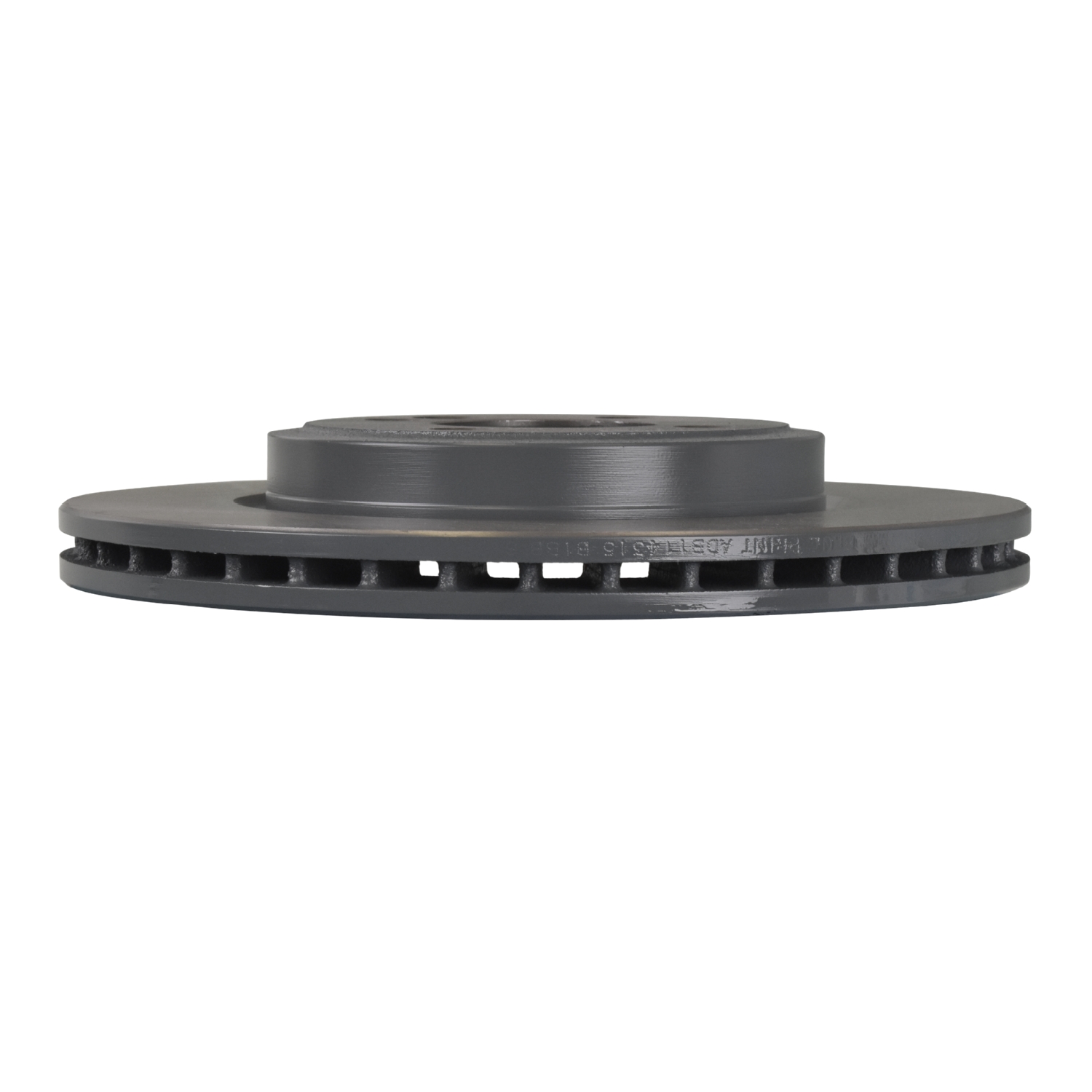

Front Axle Brake Disc
BLUE PRINT ADB114315
Front Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
21.9mm
Rim Hole Number
4-Hole
Number of mounting bores
1
Thickness [mm]
44mm
Outer Diameter [mm]
276mm
Bolt Hole Circle Ø [mm]
100mm
Surface
Coated
Brake Disc Type
internally vented
Fitting Position
Front Axle
Minimum thickness [mm]
20.4mm
Centering Diameter [mm]
64.1mm
Weight [kg]
5.6kg
Observe service information
EAN / Barcode
5050063217926
OEM Part Numbers
- MINI 34 11 6 774 984
