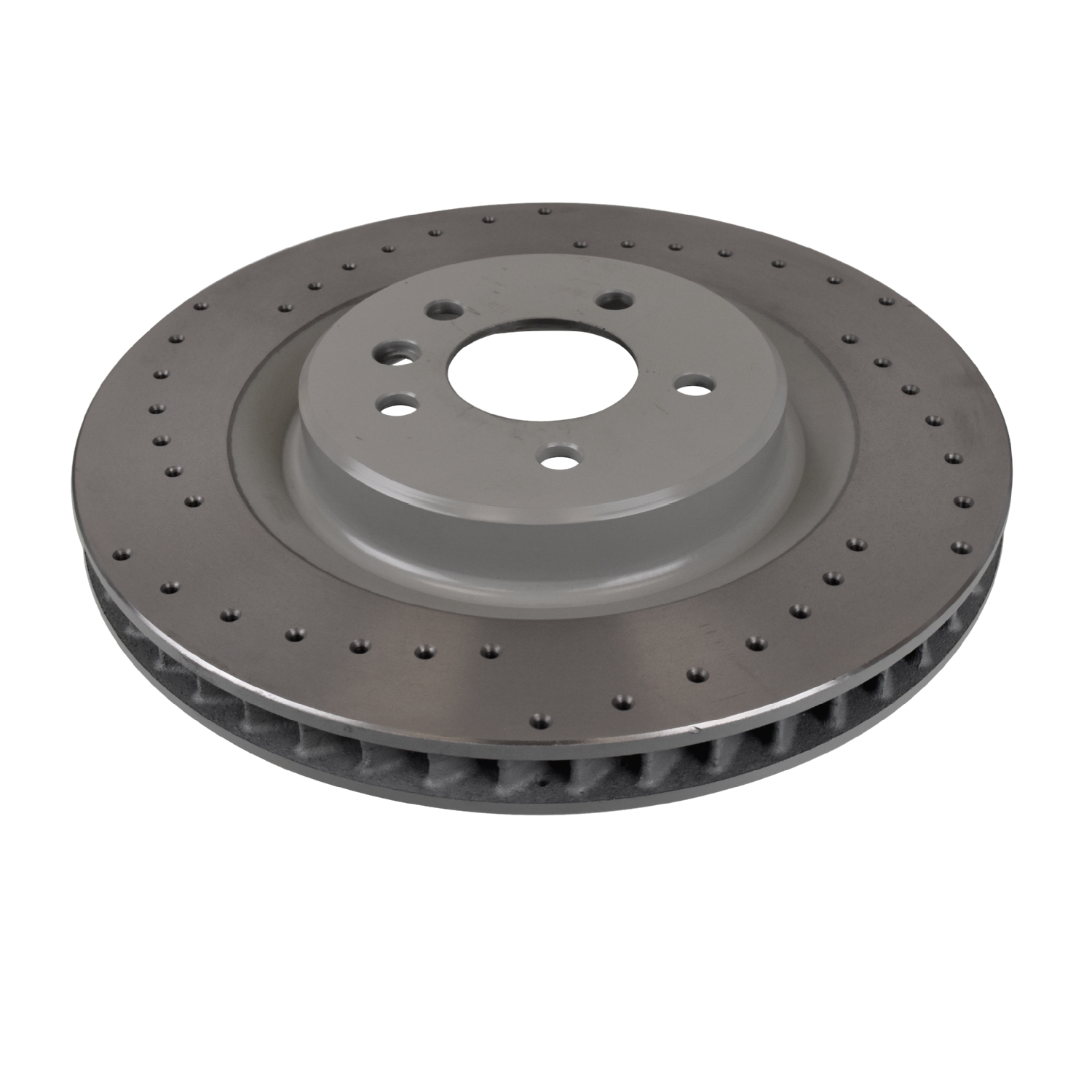

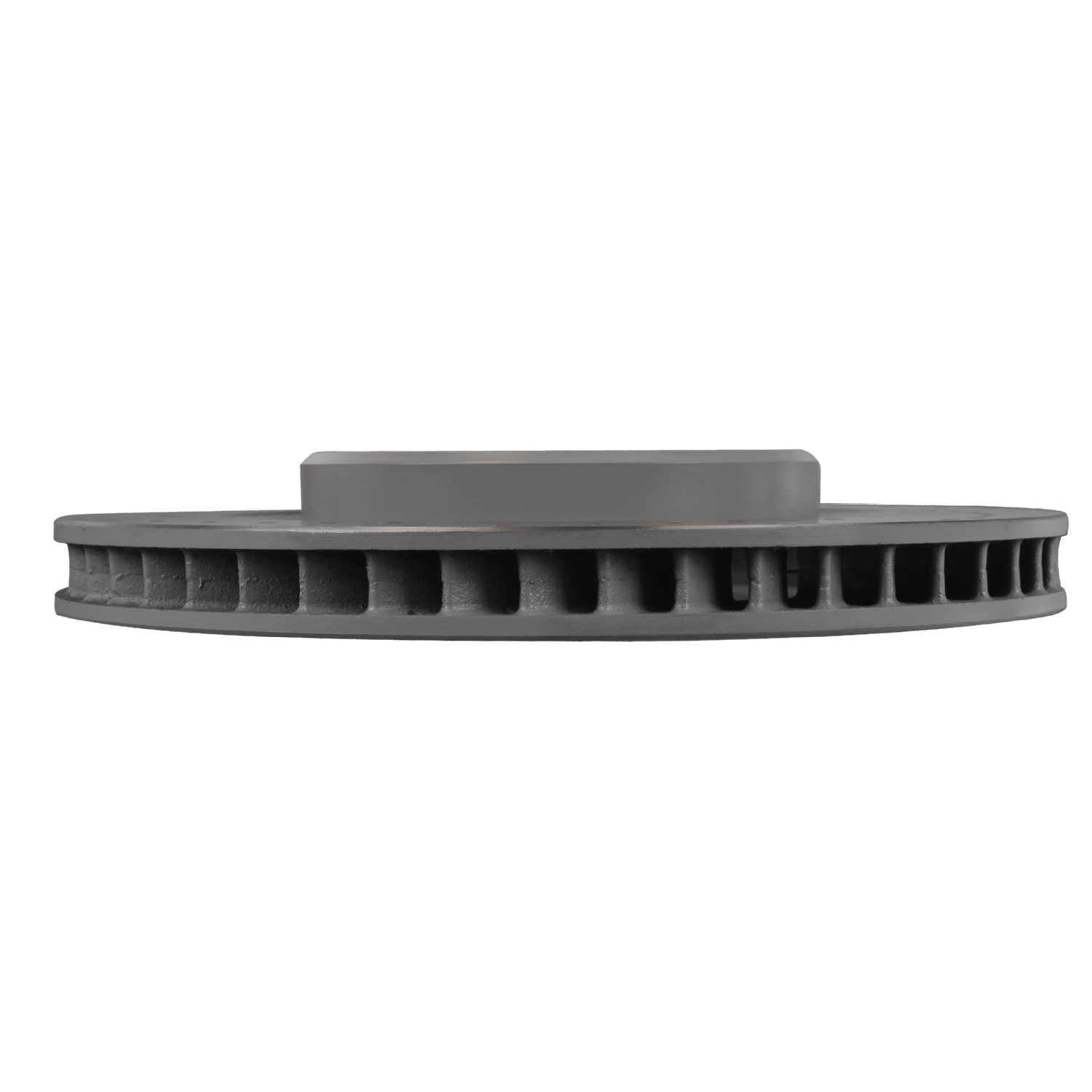

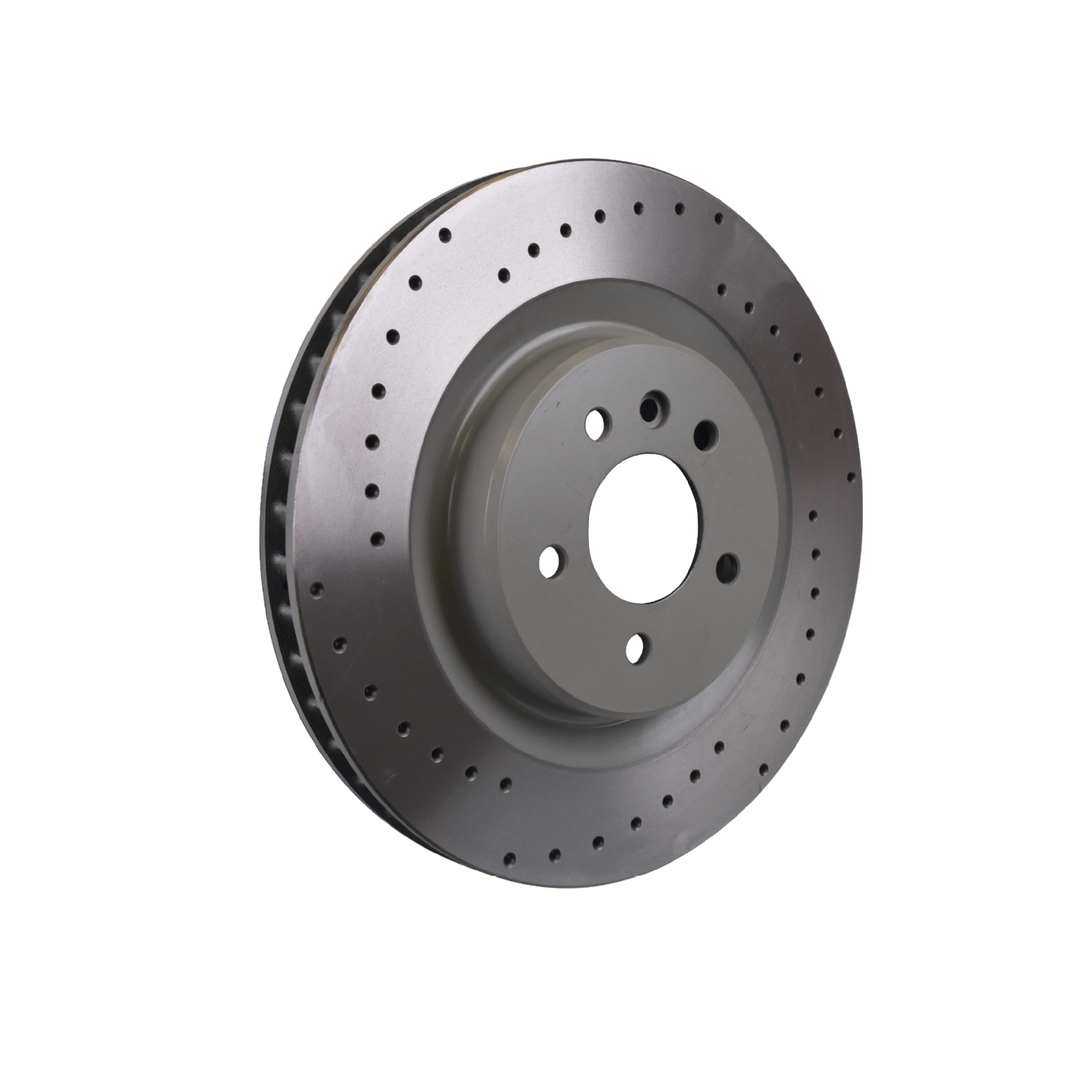

Front Axle Left Brake Disc
BLUE PRINT ADT343301
Front Axle Left
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
32mm
Rim Hole Number
5-Hole
Number of mounting bores
1
Thickness [mm]
53mm
Outer Diameter [mm]
350mm
Bolt Hole Circle Ø [mm]
114mm
Surface
Coated
Brake Disc Type
perforated/vented
Fitting Position
Front Axle Left
Minimum thickness [mm]
30mm
Centering Diameter [mm]
71.1mm
Weight [kg]
9.415kg
Observe service information
EAN / Barcode
5050063179927
OEM Part Numbers
- LOTUS C132J4007F
