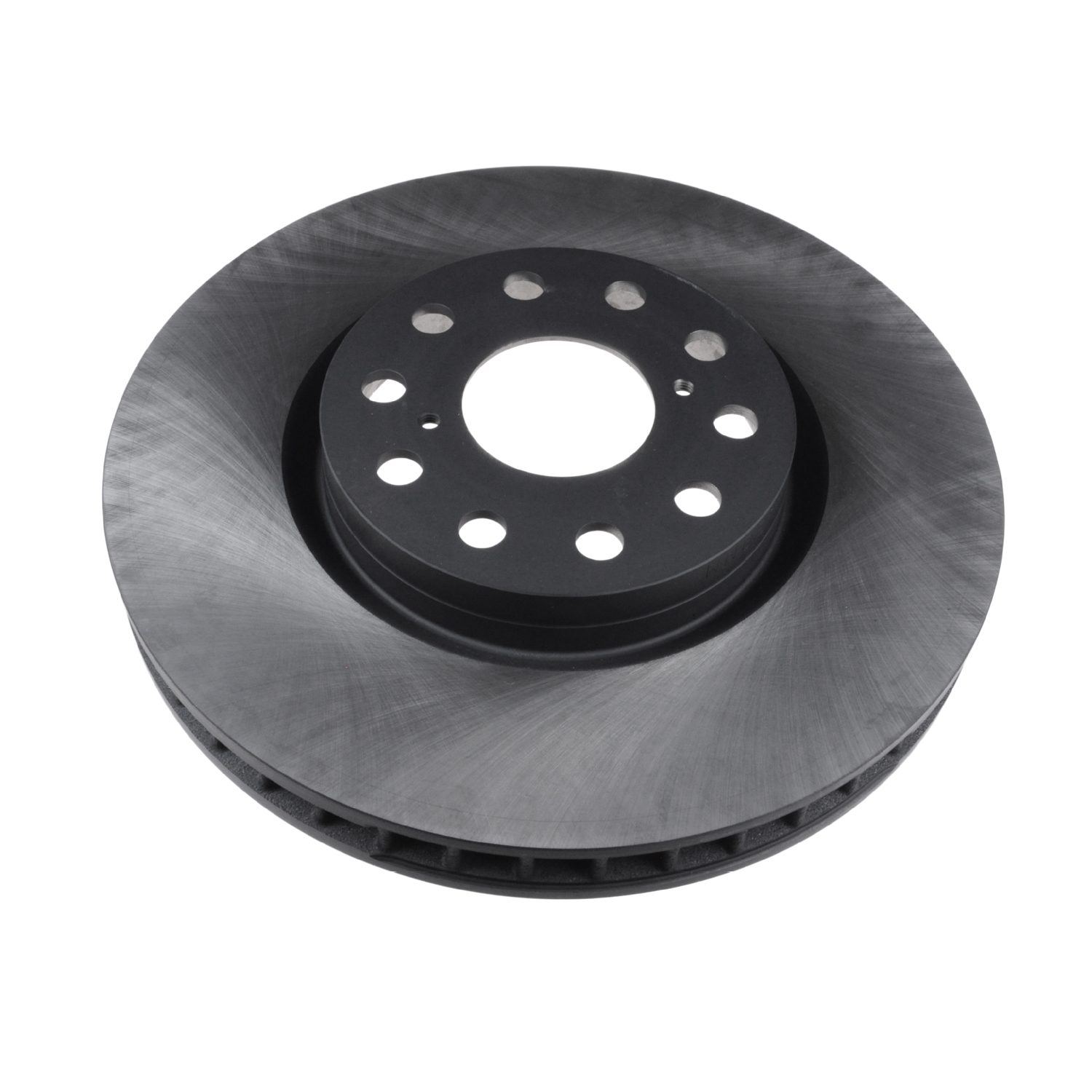

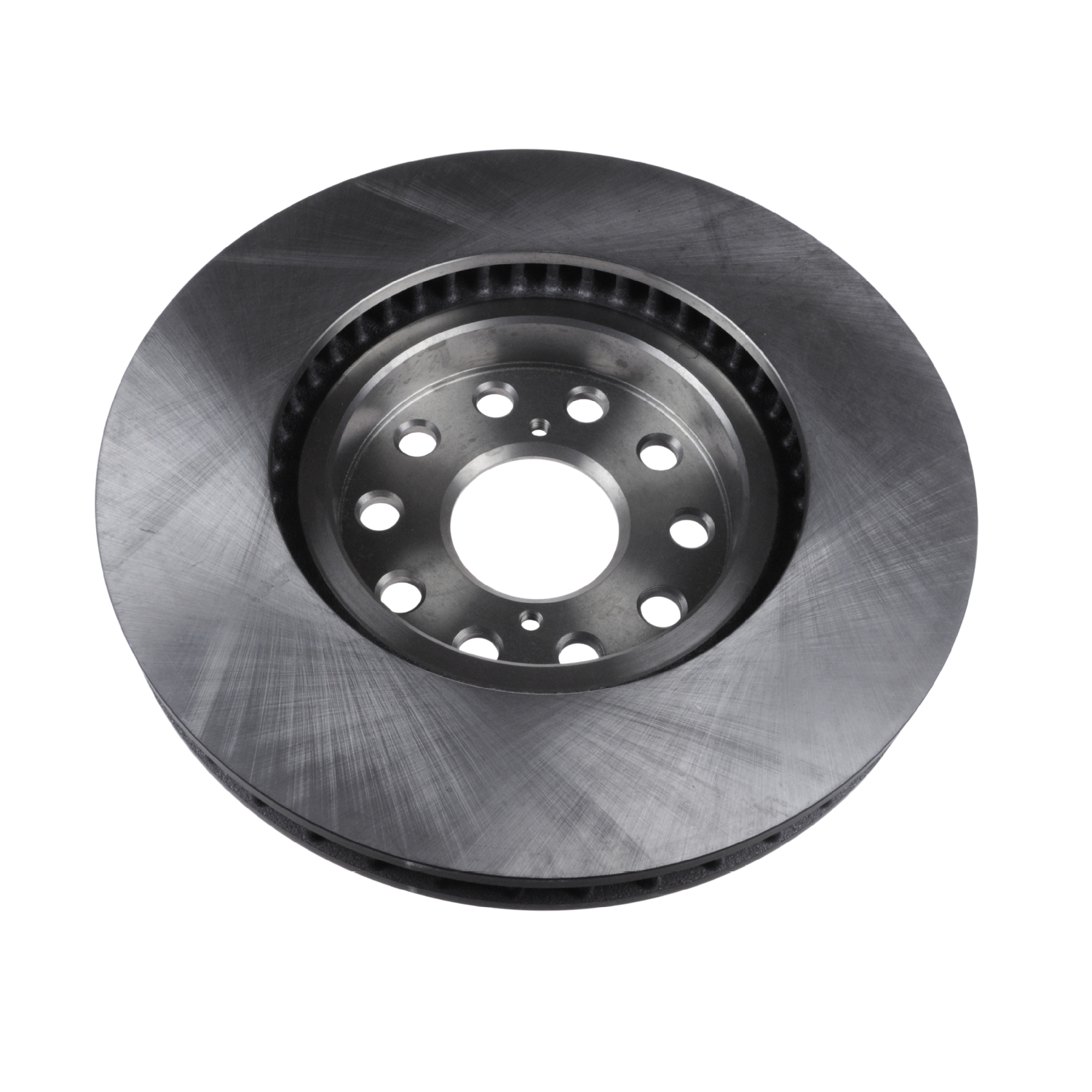

Front Axle Brake Disc
BLUE PRINT ADT343134
Front Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
32.5mm
Rim Hole Number
5-Hole
Number of mounting bores
5
Thickness [mm]
51mm
Outer Diameter [mm]
296mm
Bolt Hole Circle Ø [mm]
114mm
Surface
Coated
Brake Disc Type
internally vented
Fitting Position
Front Axle
Minimum thickness [mm]
30mm
Weight [kg]
7.83kg
Observe service information
EAN / Barcode
5050063617634
OEM Part Numbers
- TOYOTA 43512-14190
- TOYOTA 43512-14220
