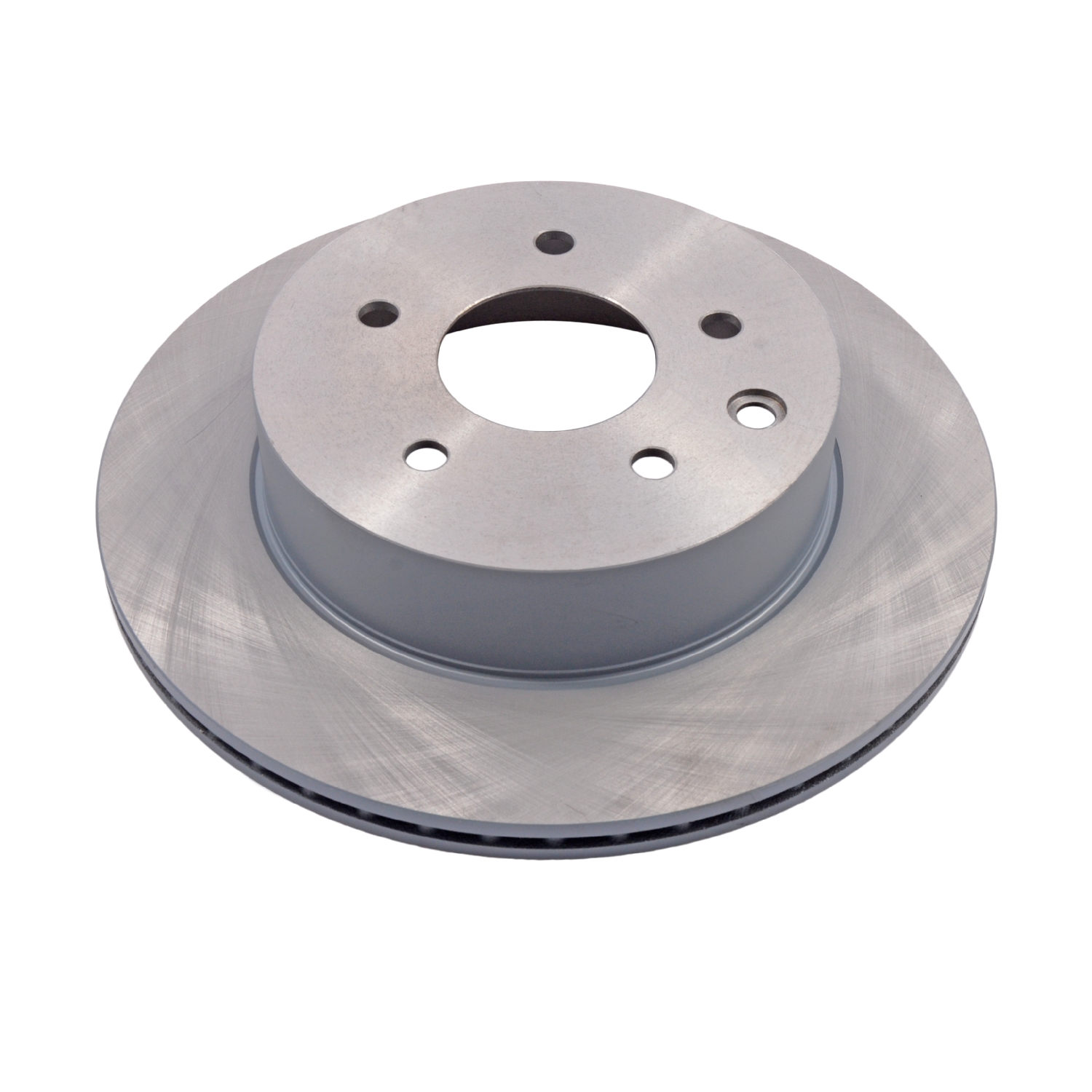

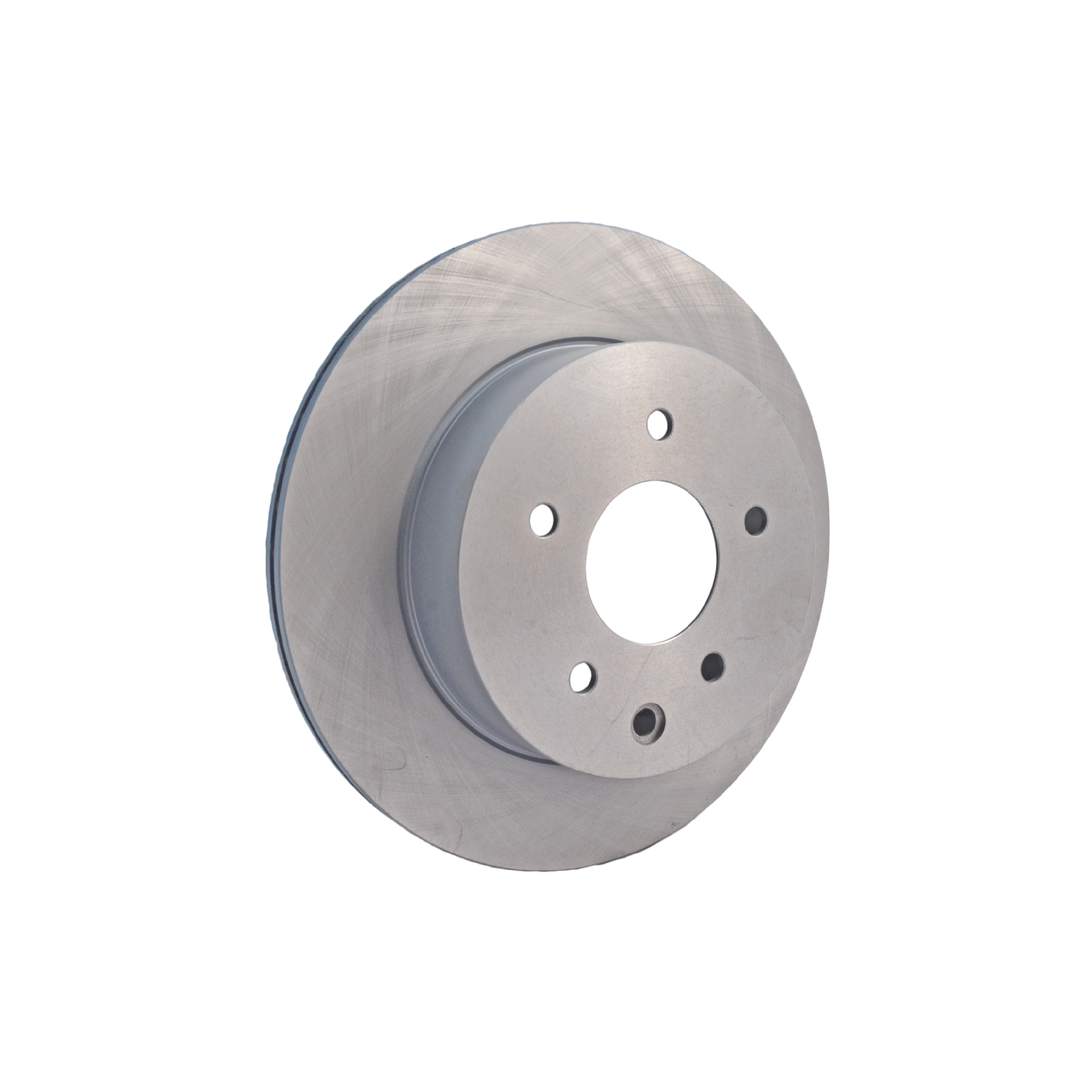

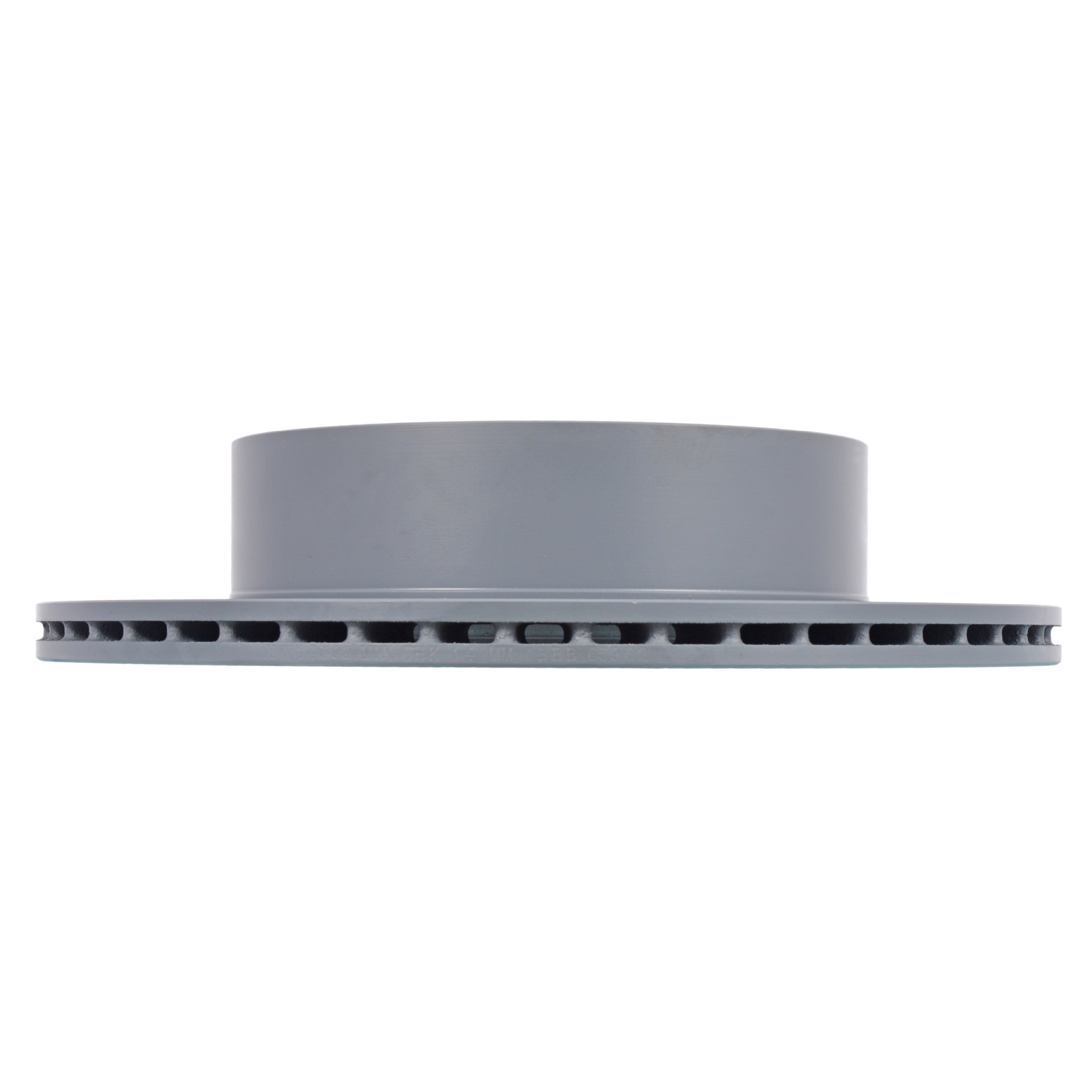

Rear Axle Brake Disc
BLUE PRINT ADN14399
Rear Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
16mm
Rim Hole Number
5-Hole
Thickness [mm]
62mm
Outer Diameter [mm]
292mm
Bolt Hole Circle Ø [mm]
114mm
Surface
Coated
Brake Disc Type
internally vented
Fitting Position
Rear Axle
Minimum thickness [mm]
14mm
Centering Diameter [mm]
68.1mm
Weight [kg]
5.59kg
Observe service information
EAN / Barcode
5050063143997
OEM Part Numbers
- NISSAN 43206-3NL0A
- NISSAN 43206-3NL0B
- NISSAN 43206-8H304
- NISSAN 43206-8H305
- NISSAN 43206-8H700
- NISSAN 43206-8H701
- NISSAN 43206-8H702
- RENAULT 43 20 000 16R
- RENAULT 43 20 031 12R
