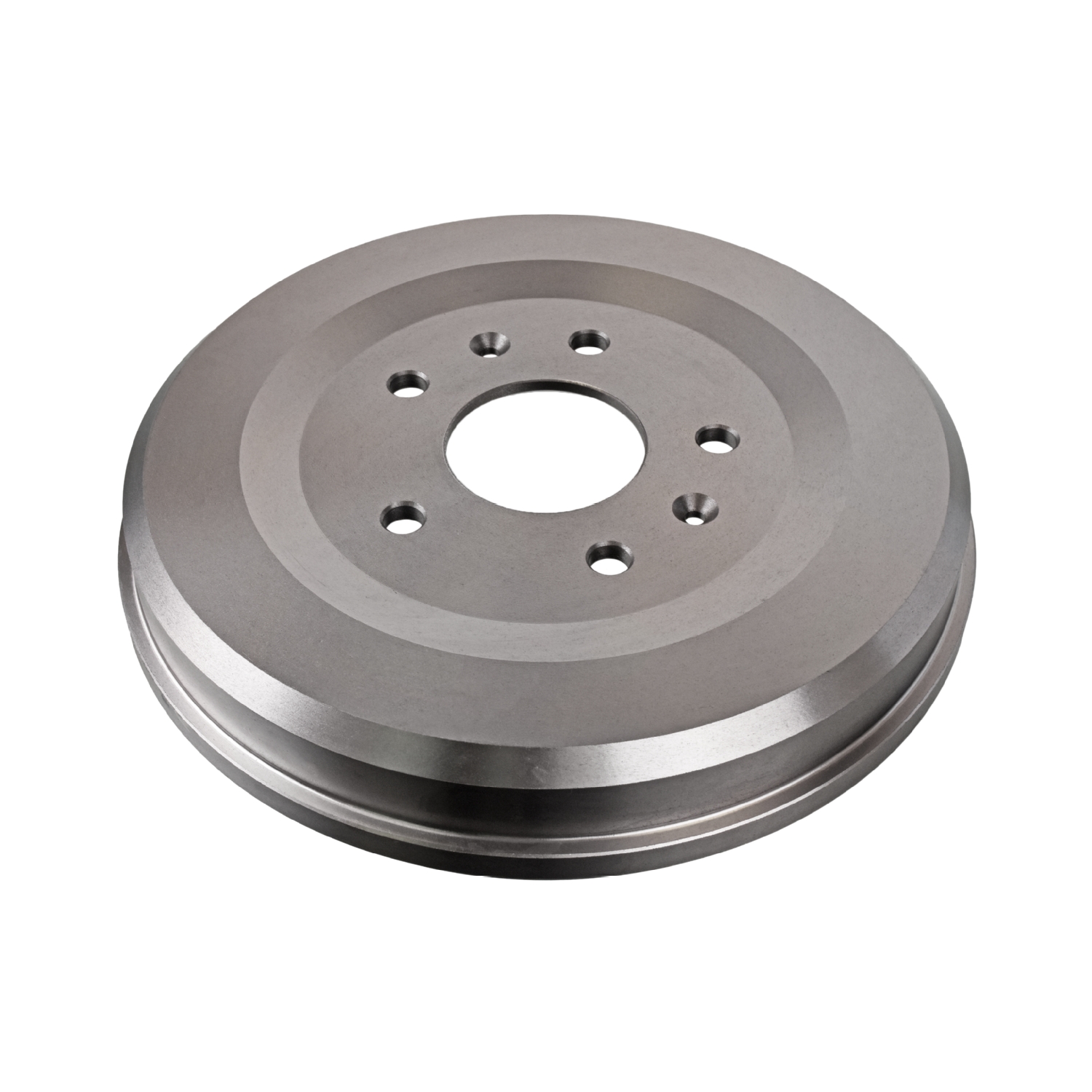

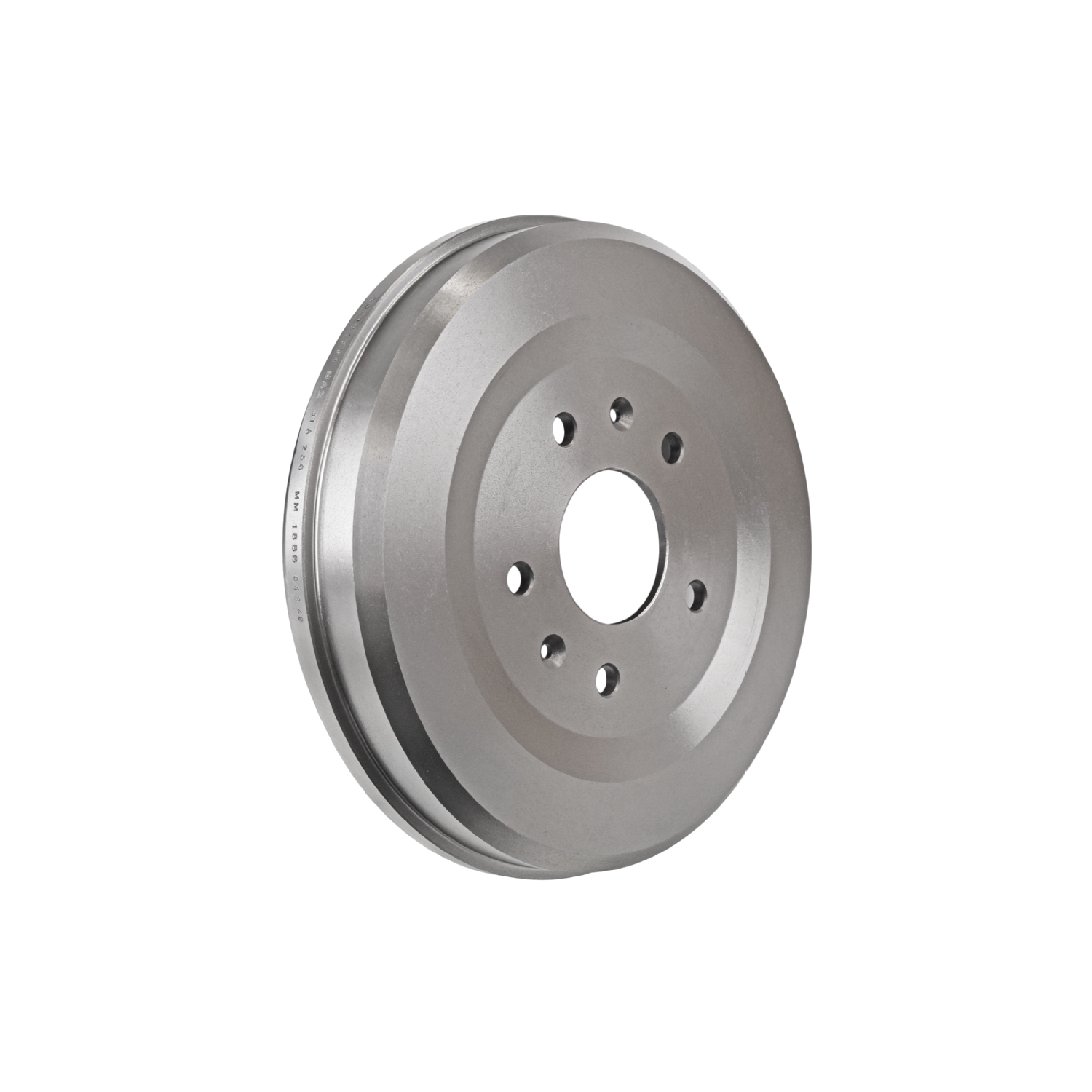

Rear Axle Brake Drum
BLUE PRINT ADJ134701
Rear Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Rim Hole Number
5-Hole
Number of mounting bores
2
Width [mm]
47mm
Thickness [mm]
56mm
Inner Diameter [mm]
254mm
Outer Diameter [mm]
290mm
Bolt Hole Circle Ø [mm]
114mm

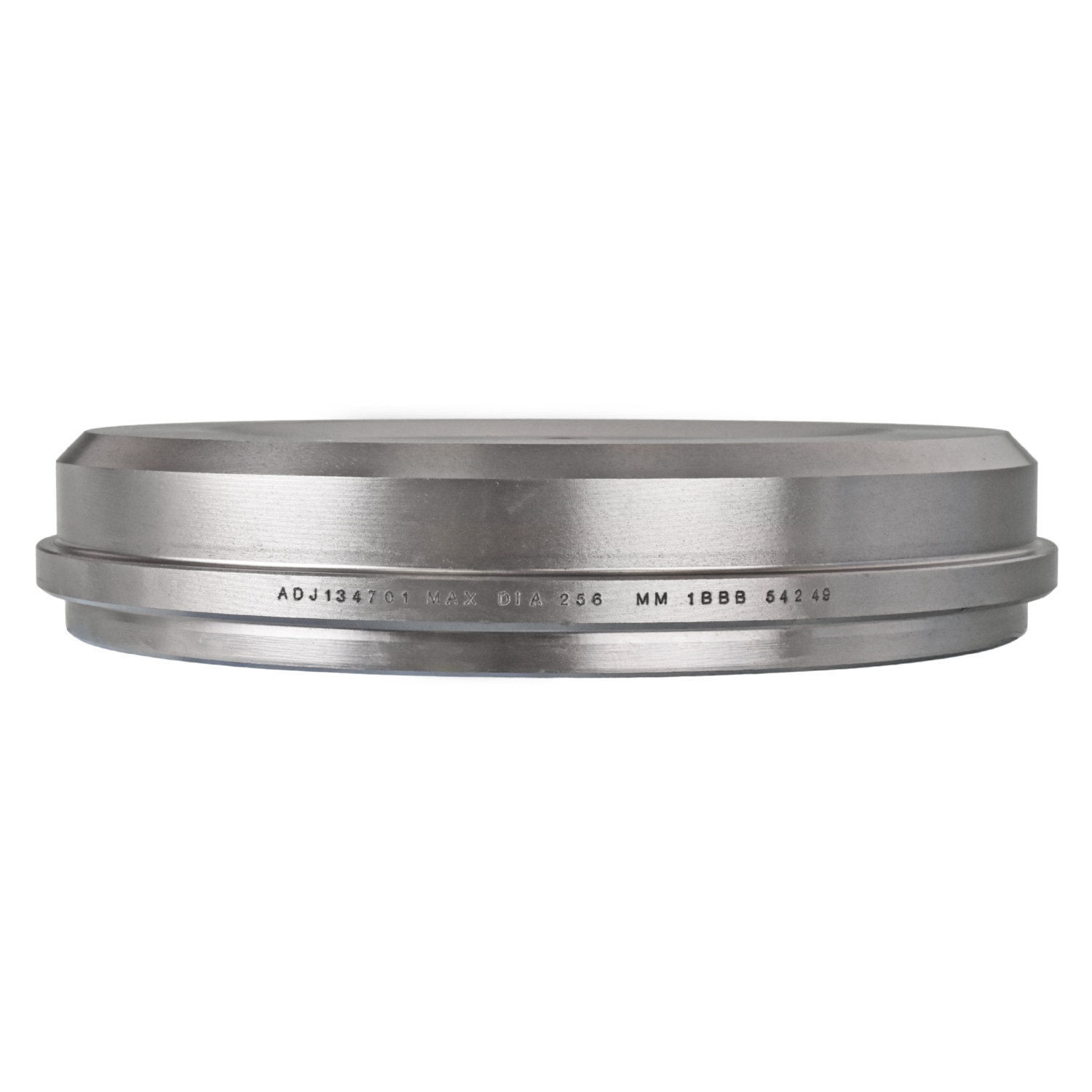

max. brake drum reboring dimension [mm]
256mm
Fitting Position
Rear Axle
Centering Diameter [mm]
66mm
Weight [kg]
6.58kg
EAN / Barcode
5050063200973
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
OEM Part Numbers
- LAND ROVER SDC 100110
- LAND ROVER SDC 100130
