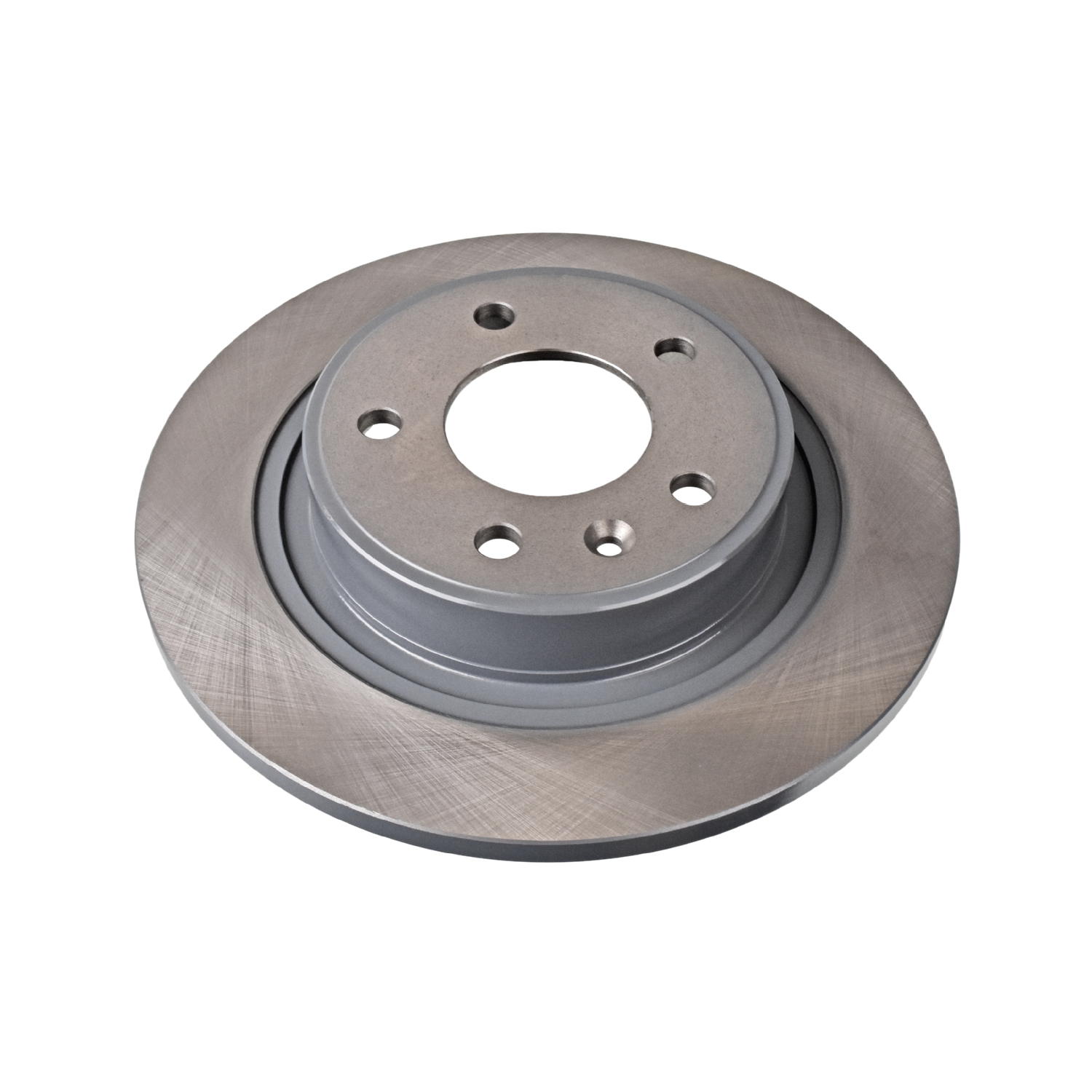

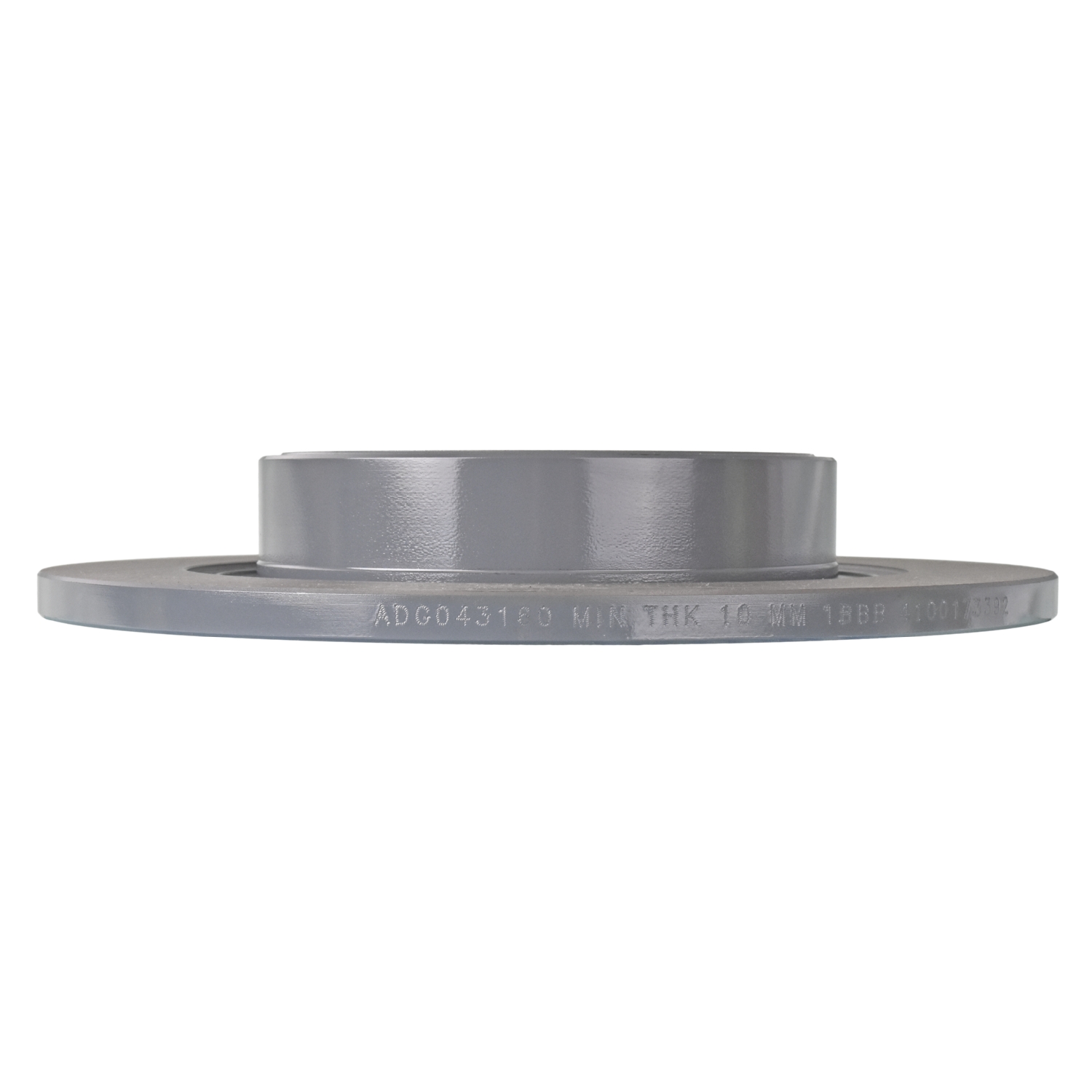

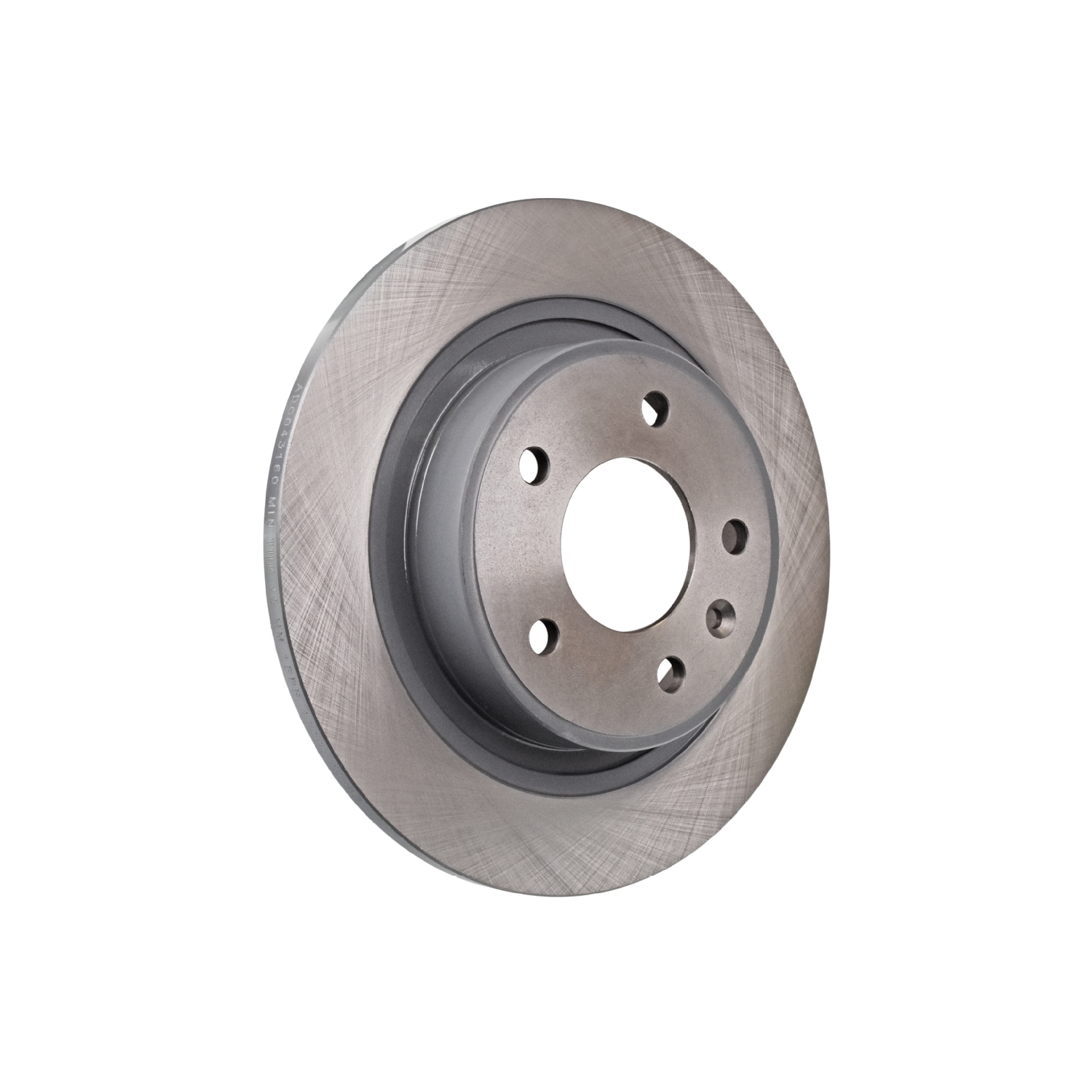

Rear Axle Brake Disc
BLUE PRINT ADG043160
Rear Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
12mm
Rim Hole Number
5-Hole
Number of mounting bores
1
Thickness [mm]
45mm
Outer Diameter [mm]
292mm
Bolt Hole Circle Ø [mm]
115mm
Surface
Coated
Brake Disc Type
solid
Fitting Position
Rear Axle
Minimum thickness [mm]
10mm
Centering Diameter [mm]
70mm
Weight [kg]
5.83kg
Observe service information
EAN / Barcode
5050063039221
OEM Part Numbers
- CHEVROLET 13502139
