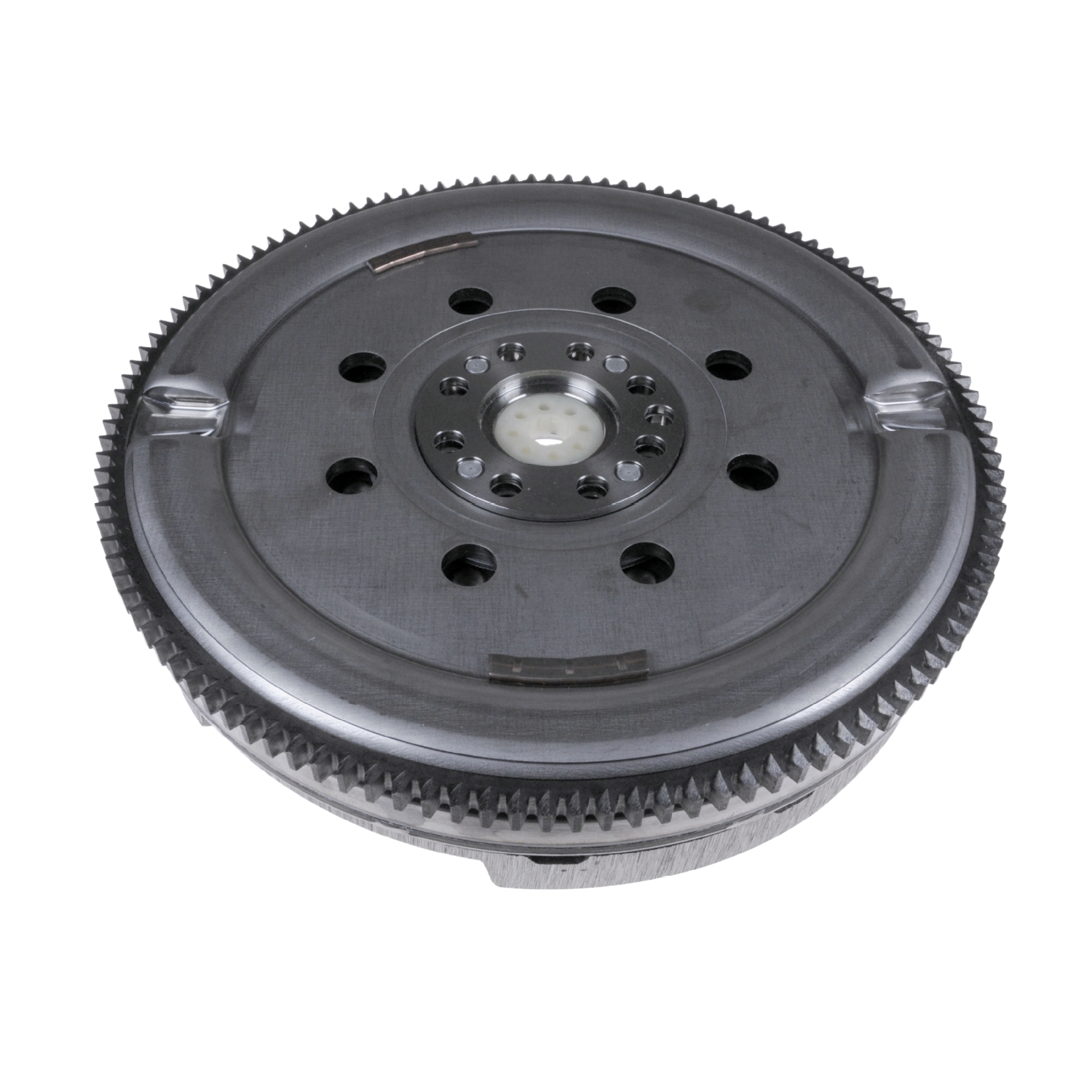

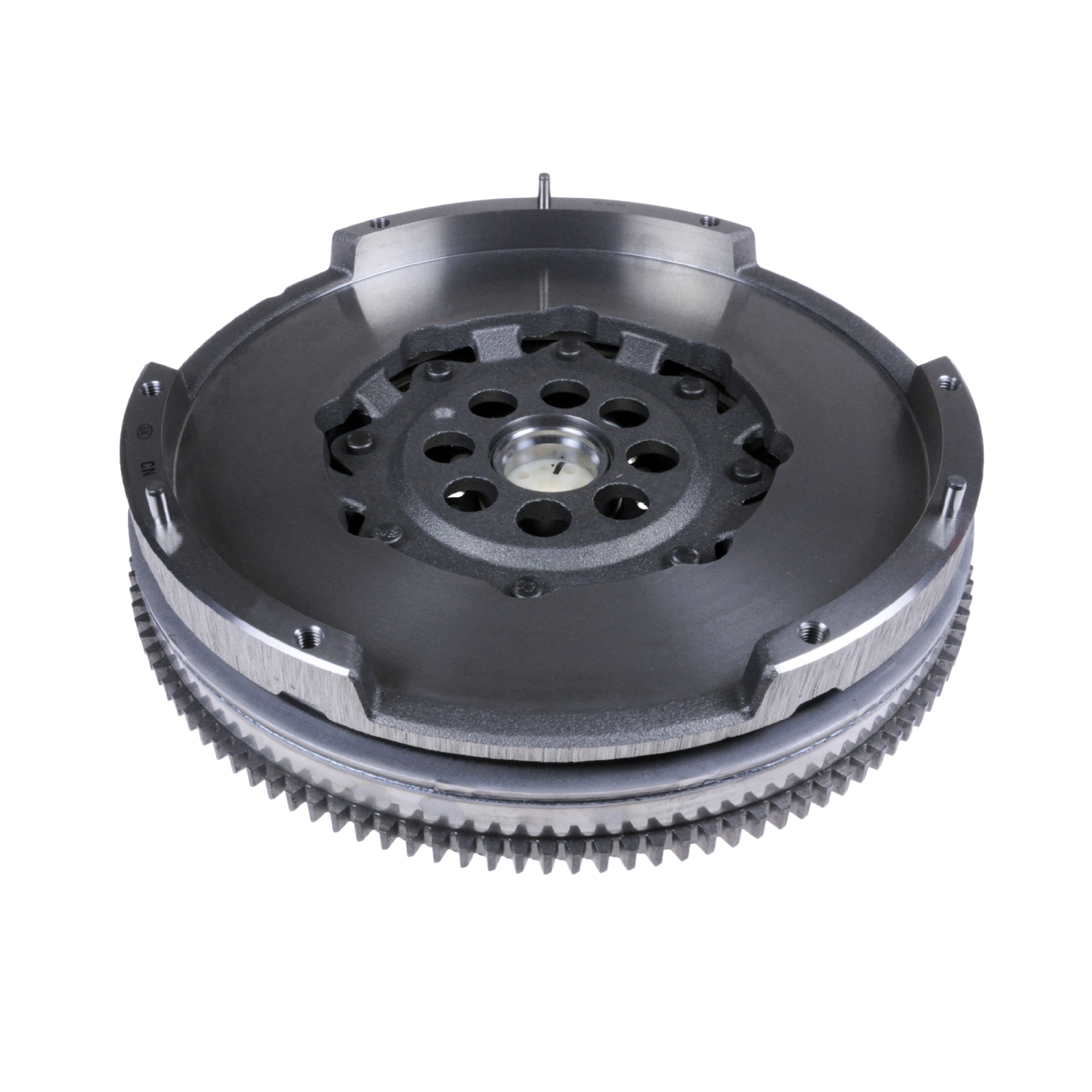

Flywheel
BLUE PRINT ADG03515
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Hub Inner Diameter [mm]
37.35mm
Number of EDC bores/notches
1
Hub mounting bore diameter [mm]
10.45mm
Hub Outer Diameter [mm]
91.97mm
Pitch Circle Diameter, hub [mm]
73mm
Number of hub mounting bores
8mm
Pitch Circle Diameter, clutch pressure plate [mm]
275.9mm
Inner Diameter Tread [mm]
160mm
Clutch Pressure Plate Outer Diameter [mm]
291mm
Number of clutch pressure plate mounting bores
6mm
Number of Teeth
120
Weight [kg]
14.473kg
Observe service information
EAN / Barcode
5050063176667
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
OEM Part Numbers
- HYUNDAI 23200-27801
- HYUNDAI 23200-27802
- HYUNDAI 23200-27803
