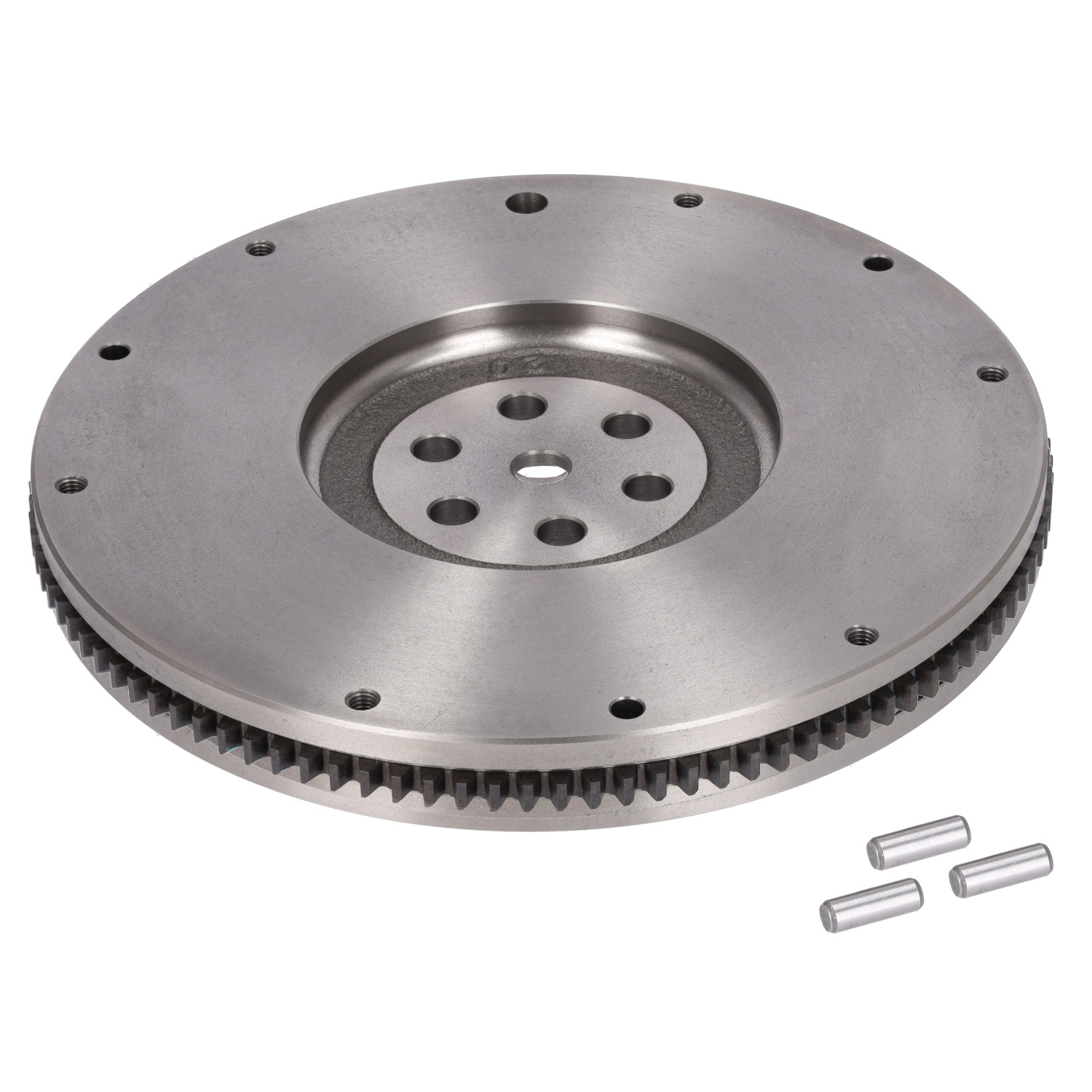

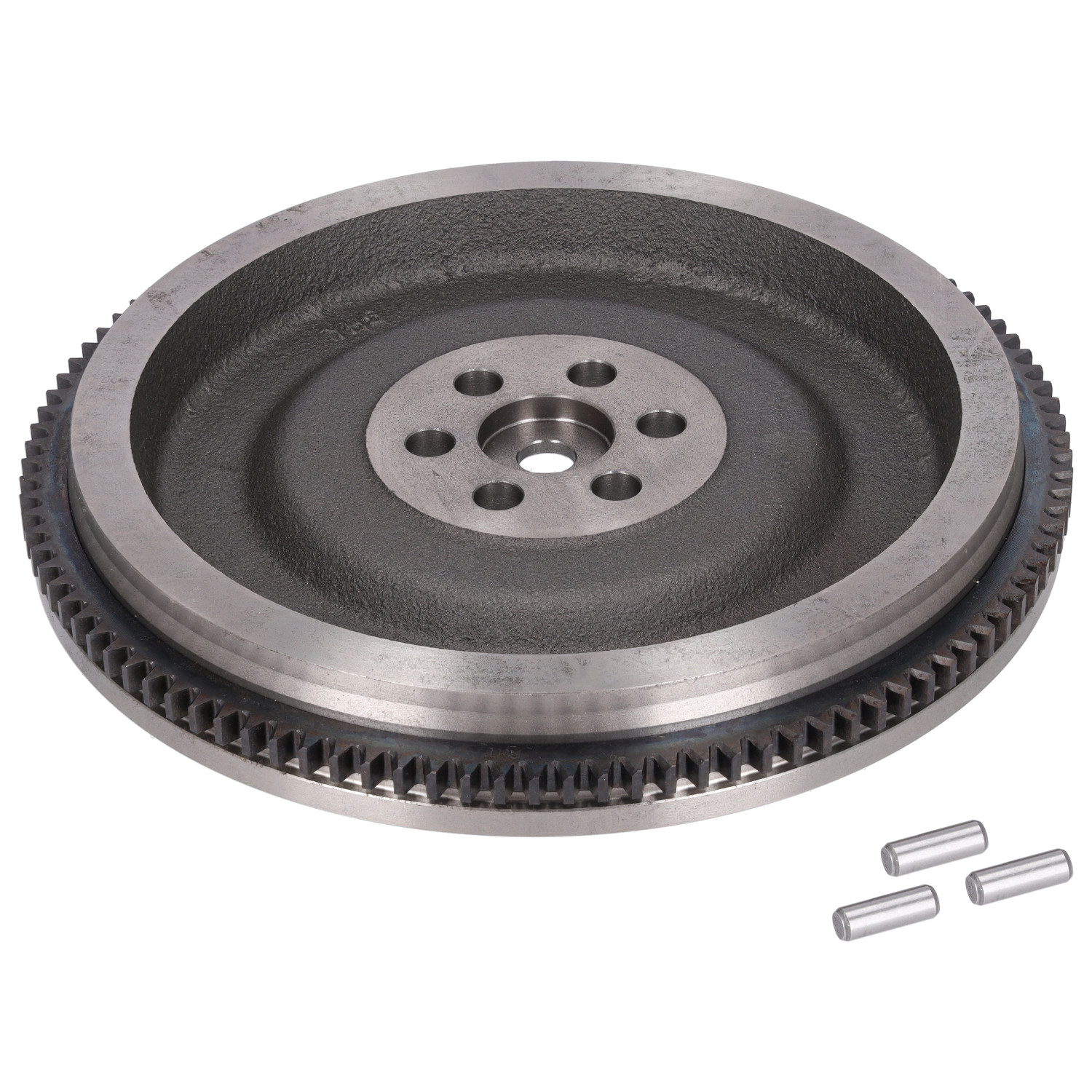

Flywheel
BLUE PRINT ADG03508
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Hub Inner Diameter [mm]
14.95mm
Hub mounting bore diameter [mm]
12.25mm
Hub Outer Diameter [mm]
92.2mm
Pitch Circle Diameter, hub [mm]
60mm
Number of hub mounting bores
8mm
Pitch Circle Diameter, clutch pressure plate [mm]
60mm
Inner Diameter Tread [mm]
126.85mm
Clutch Pressure Plate Outer Diameter [mm]
268mm
Number of clutch pressure plate mounting bores
6mm
Number of Teeth
105
Weight [kg]
8.1kg
Observe service information
EAN / Barcode
5050063096347
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
OEM Part Numbers
- HYUNDAI 23200-23700
- KIA 23200-23700
