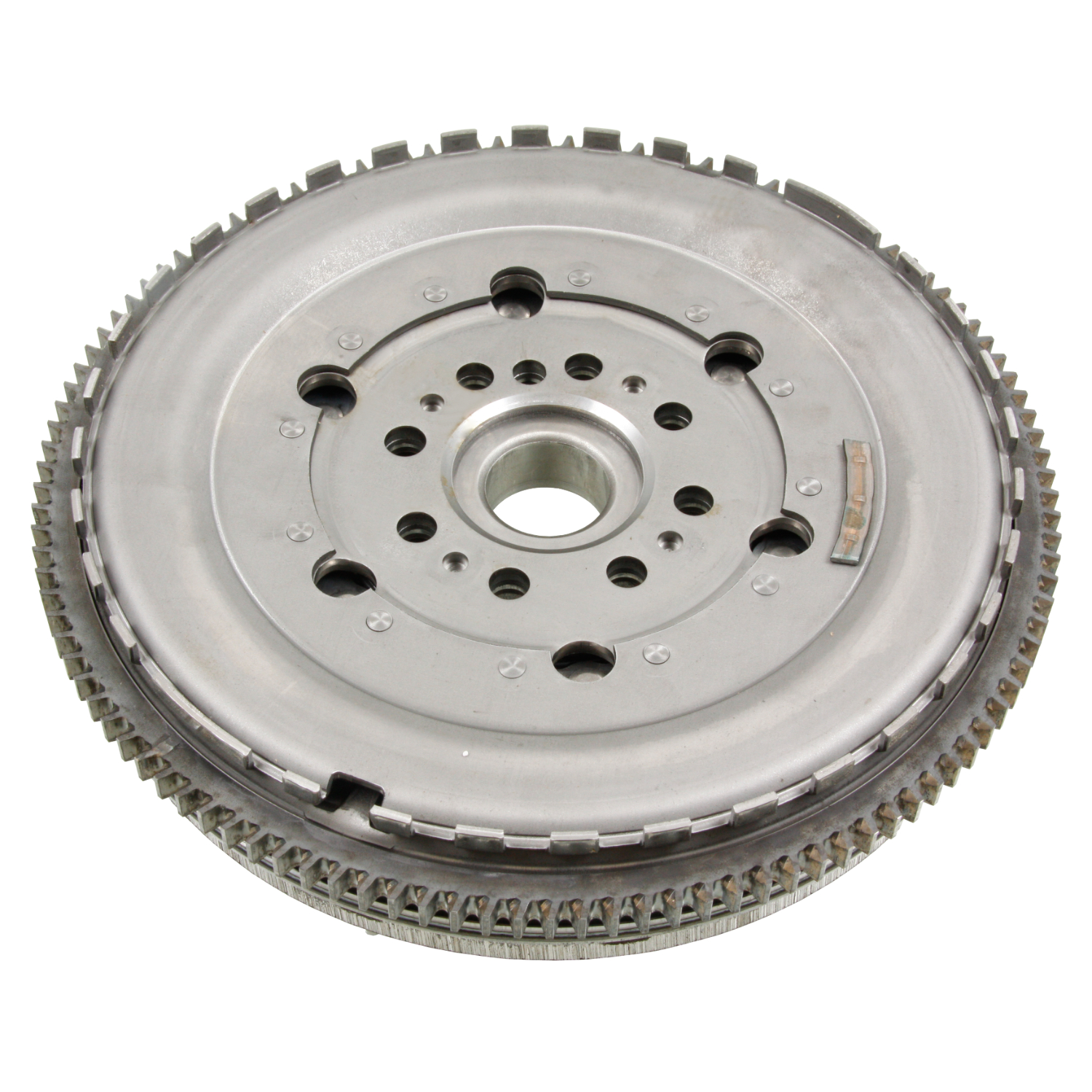

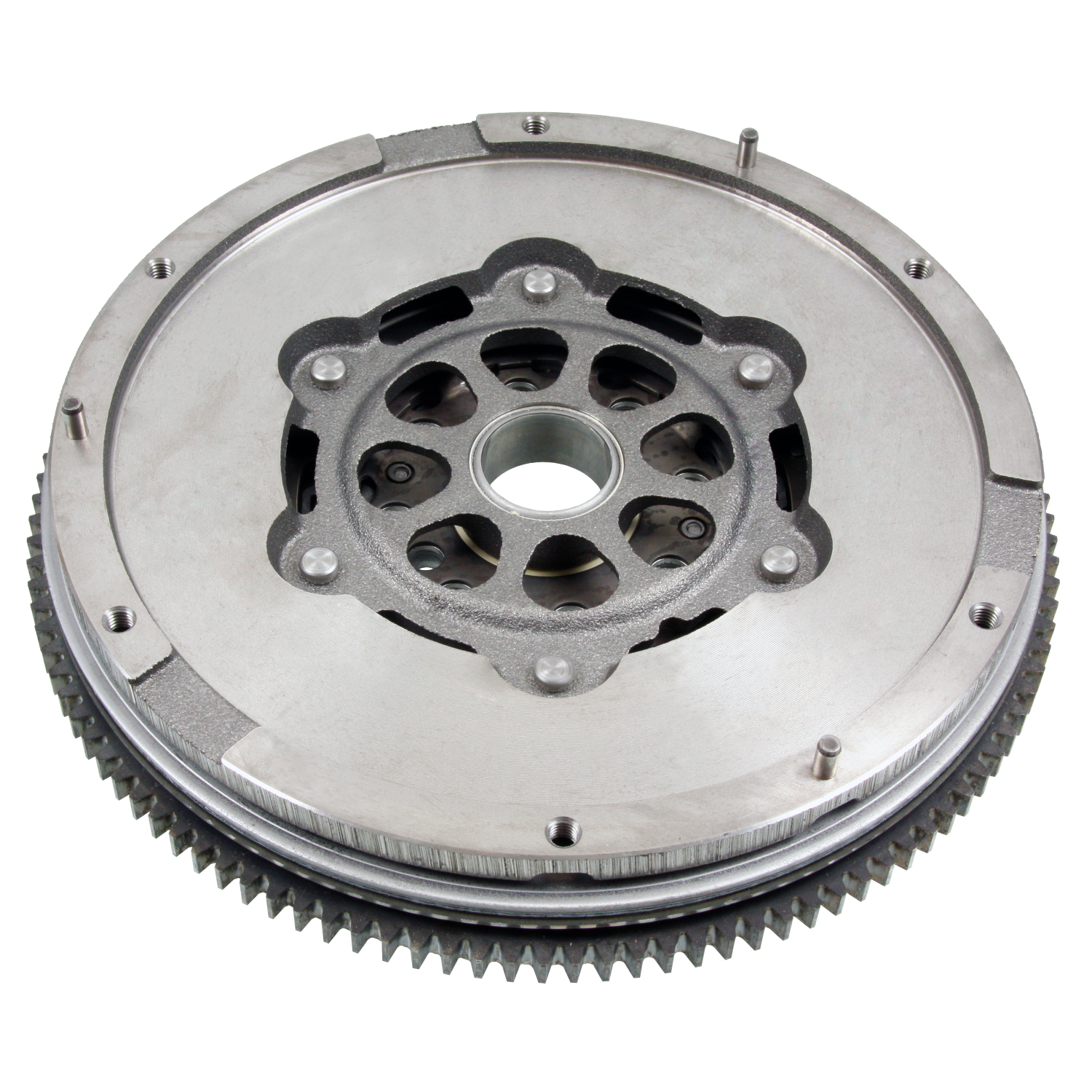

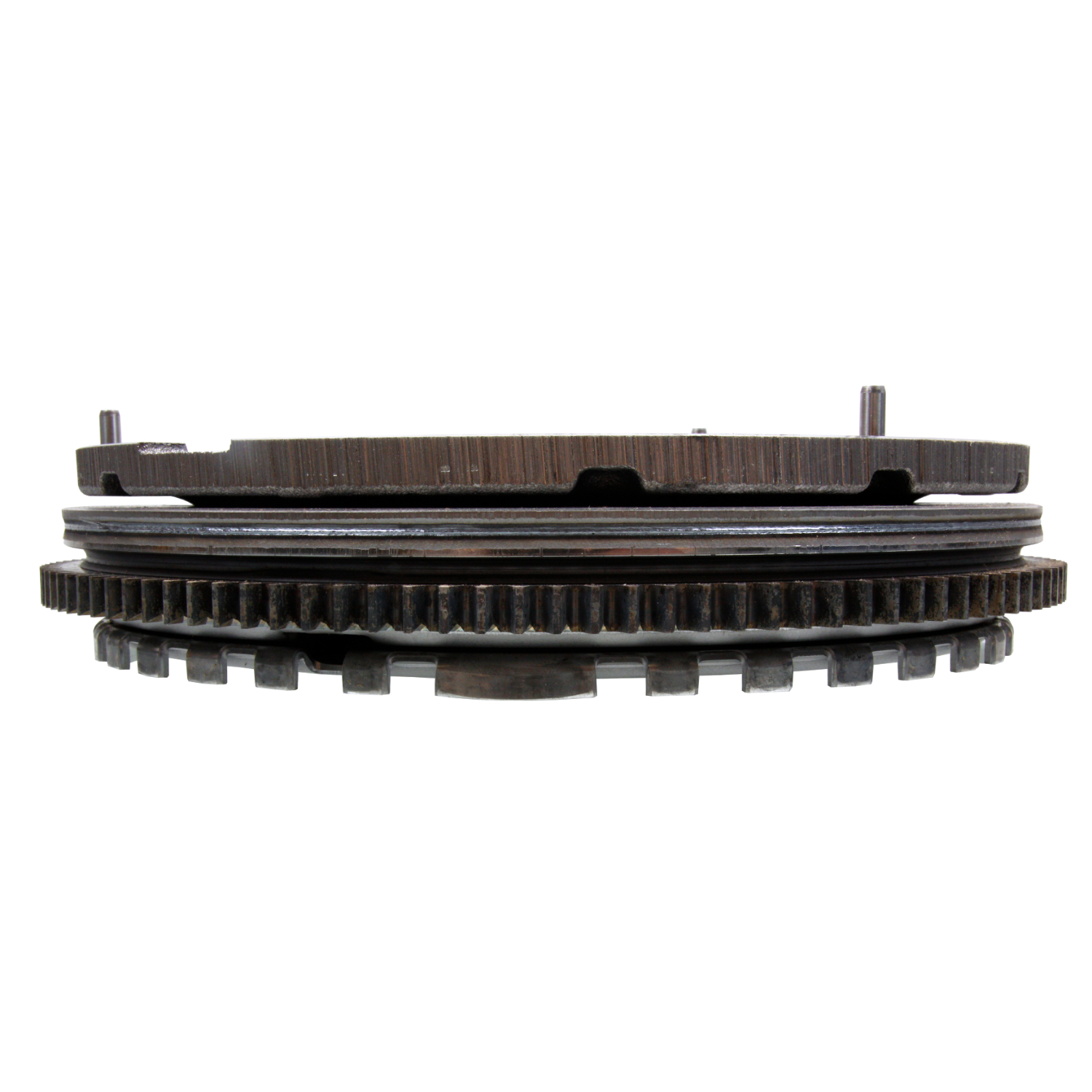

Flywheel
BLUE PRINT ADF123505
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Hub Inner Diameter [mm]
36.3mm
Number of EDC bores/notches
34
Hub mounting bore diameter [mm]
11.6mm
Hub Outer Diameter [mm]
117.4mm
Pitch Circle Diameter, hub [mm]
88mm
Number of hub mounting bores
8mm
Pitch Circle Diameter, clutch pressure plate [mm]
260mm
Inner Diameter Tread [mm]
148.9mm
Clutch Pressure Plate Outer Diameter [mm]
283mm
Number of clutch pressure plate mounting bores
6mm
Number of Teeth
116
Weight [kg]
12.42kg
Observe service information
EAN / Barcode
5057746076160
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
OEM Part Numbers
- FORD 1 128 990
- FORD USA 1S716477FA
Product Downloads / PDF Files
Vehicle Fitments
