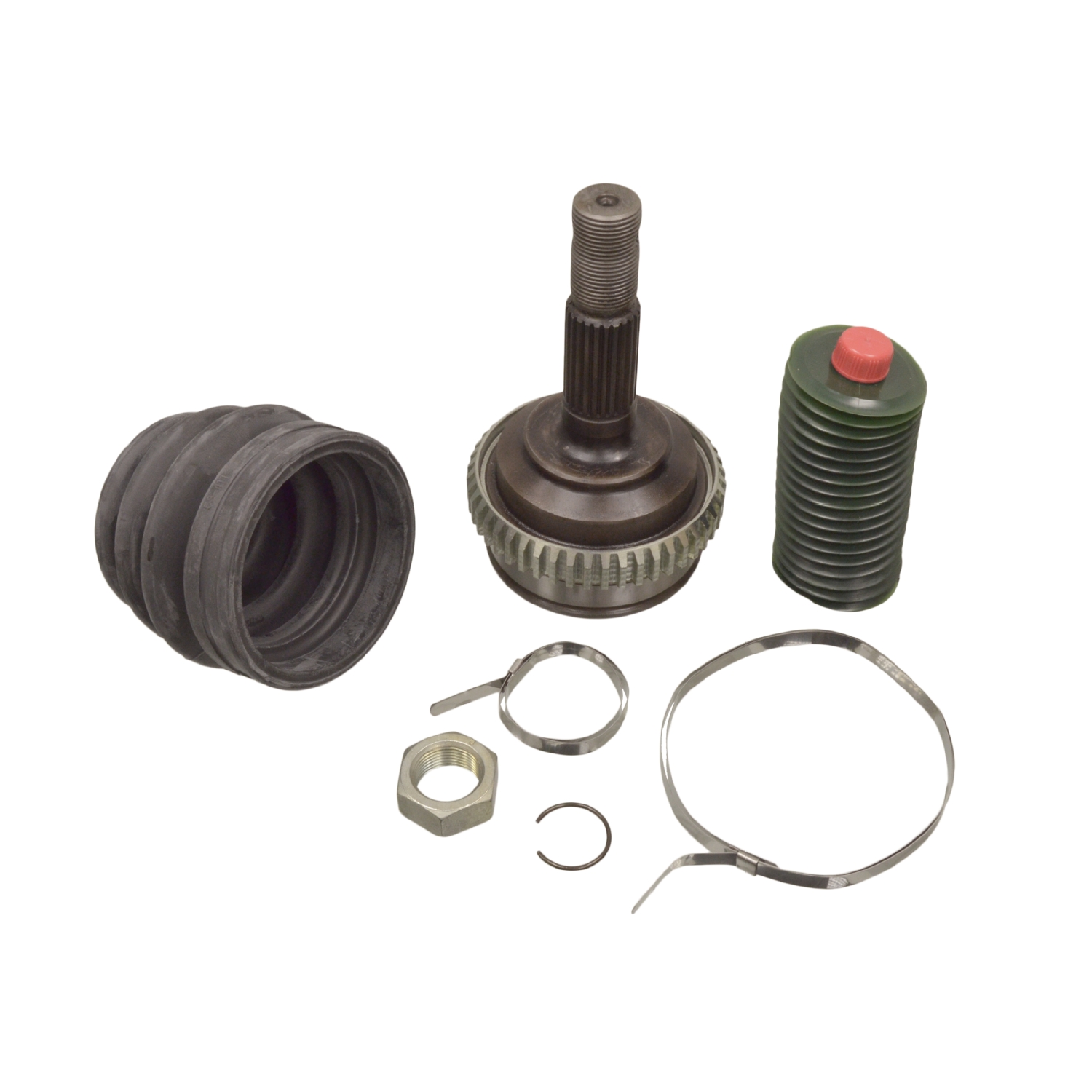

Rear Axle Joint Kit, drive shaft
BLUE PRINT ADD68901
Rear Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Length [mm]
146mm
Outer Diameter [mm]
79mm
External Thread Size
M22 x 1,5
External Toothing wheel side
24
Internal Toothing wheel side
22
Number of Teeth, ABS ring
48
Fitting Position
Rear Axle
Sealing Ring Diameter [mm]
52mm
Weight [kg]
1.96kg
Observe service information
EAN / Barcode
5050063689013
OEM Part Numbers
- DAIHATSU 43460-87780
- DAIHATSU 43460-87782
- DAIHATSU 43460-87783
- DAIHATSU 43460-87785
- DAIHATSU 43470-87780
- DAIHATSU 43470-87782
- DAIHATSU 43470-87783
- DAIHATSU 43470-87785
Product Downloads / PDF Files
Vehicle Fitments
