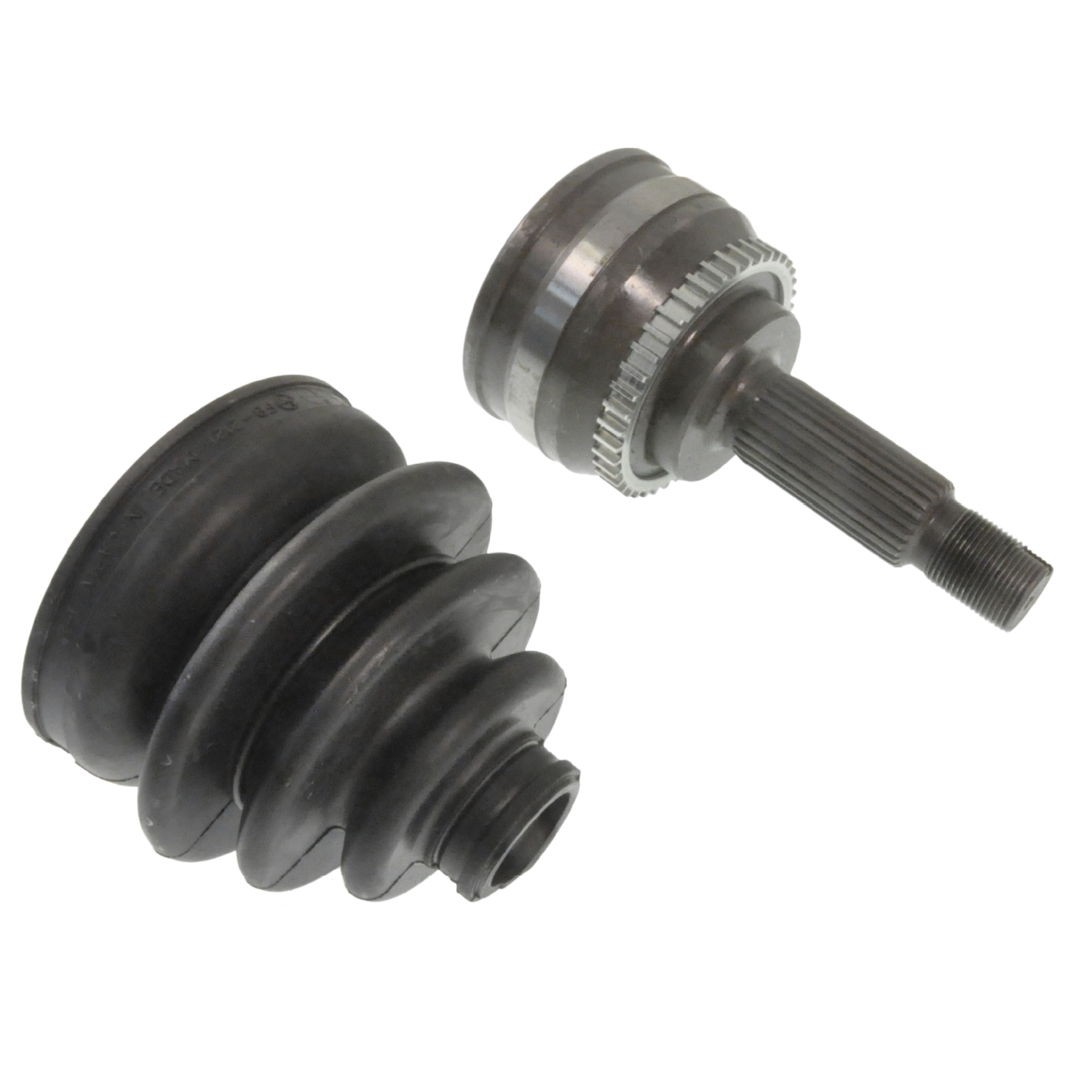

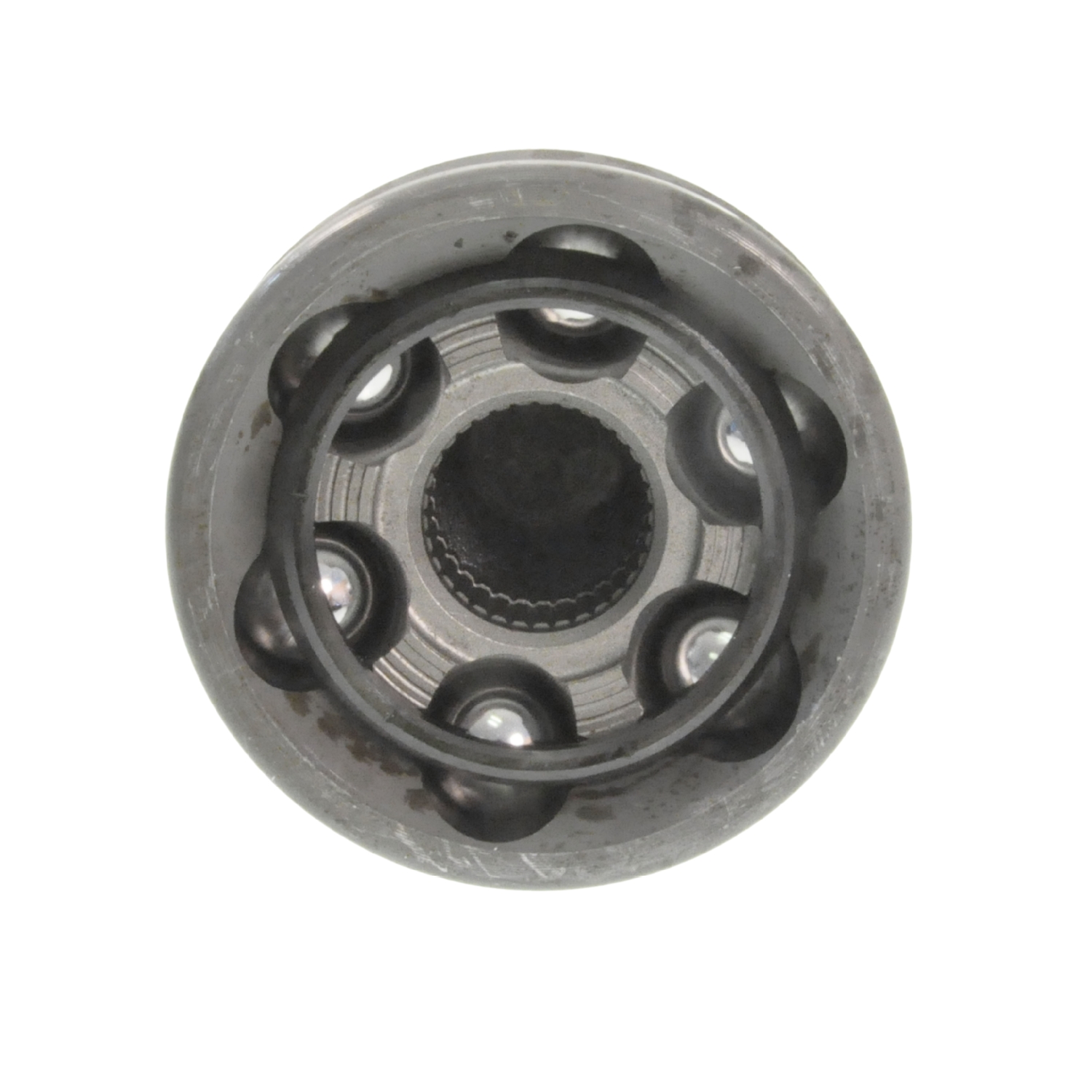

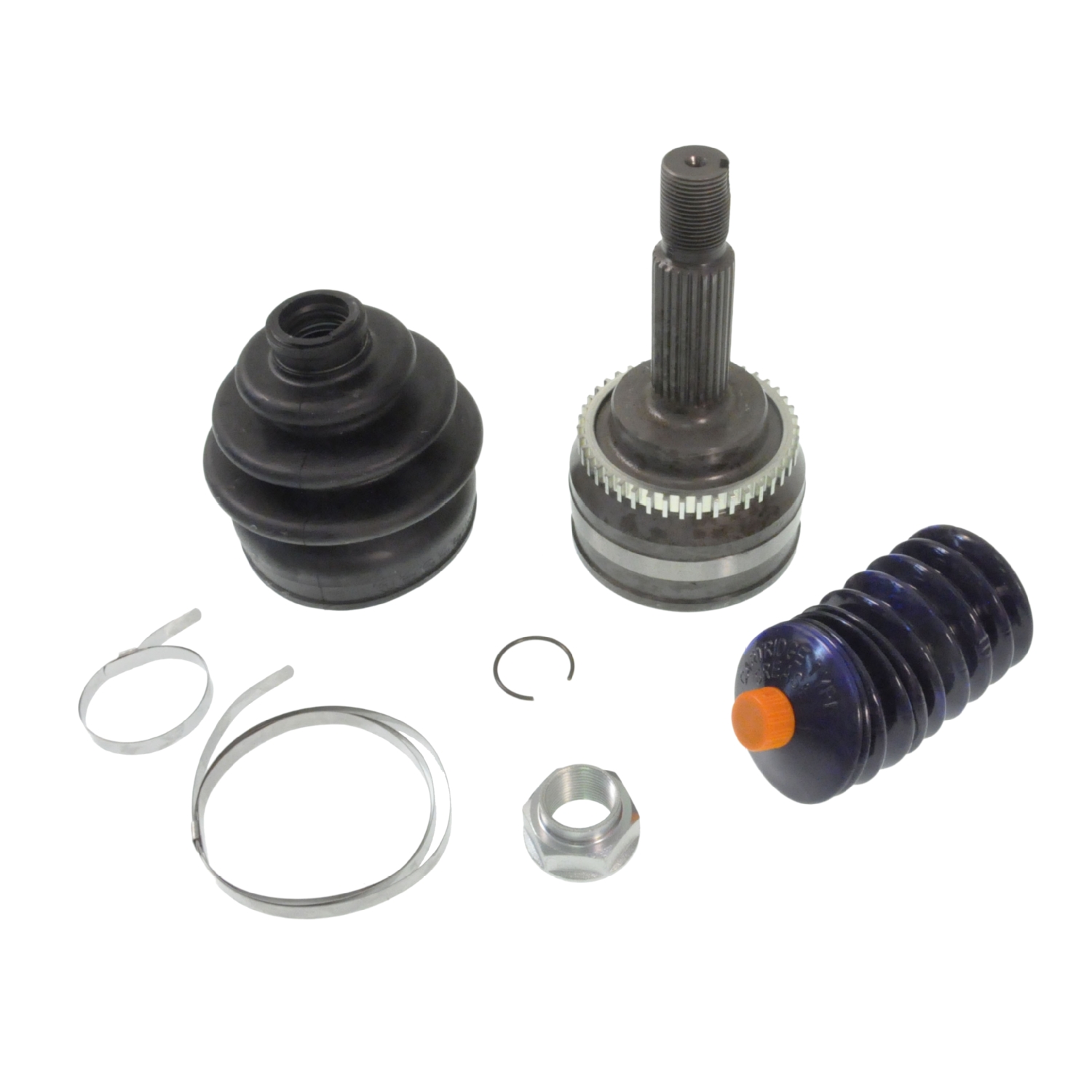

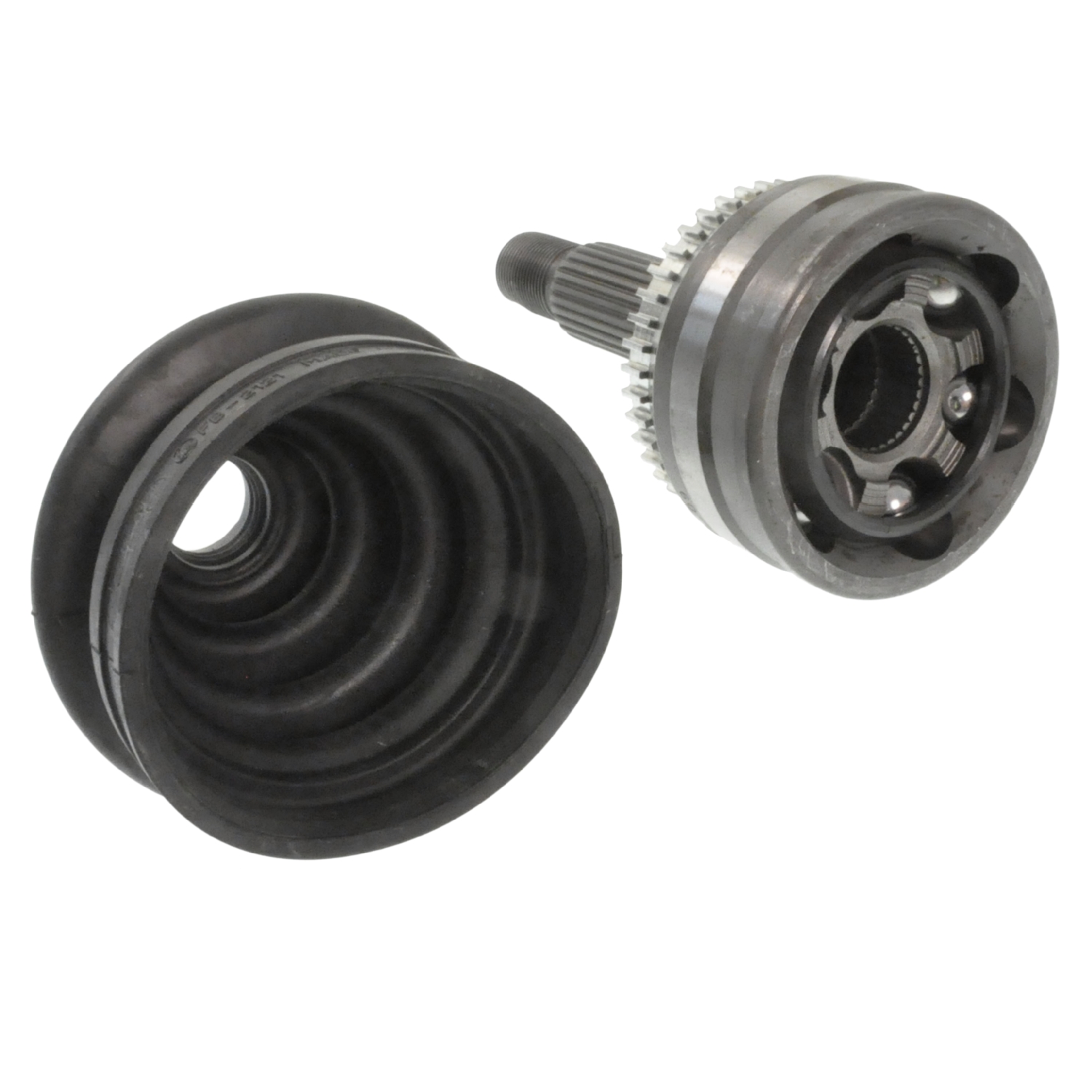

Rear Axle Joint Kit, drive shaft
BLUE PRINT ADC48929
Rear Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Length [mm]
156mm
Outer Diameter [mm]
86mm
External Thread Size
M22 x 1,5
External Toothing wheel side
26
Internal Toothing wheel side
33
Number of Teeth, ABS ring
43
Fitting Position
Rear Axle
Sealing Ring Diameter [mm]
54mm
Weight [kg]
2.38kg
Observe service information
EAN / Barcode
5050063019261
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
Product Downloads / PDF Files
Vehicle Fitments
