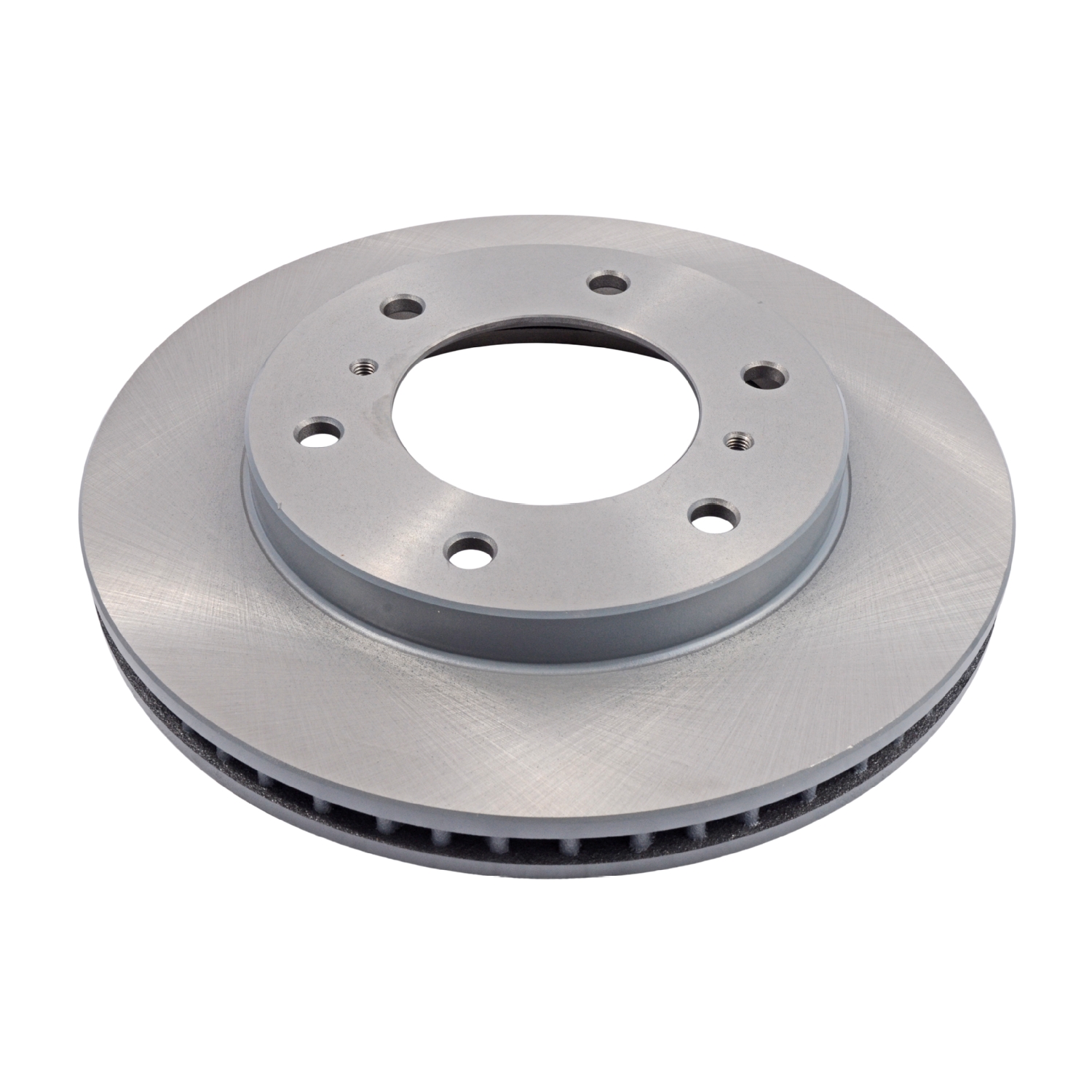

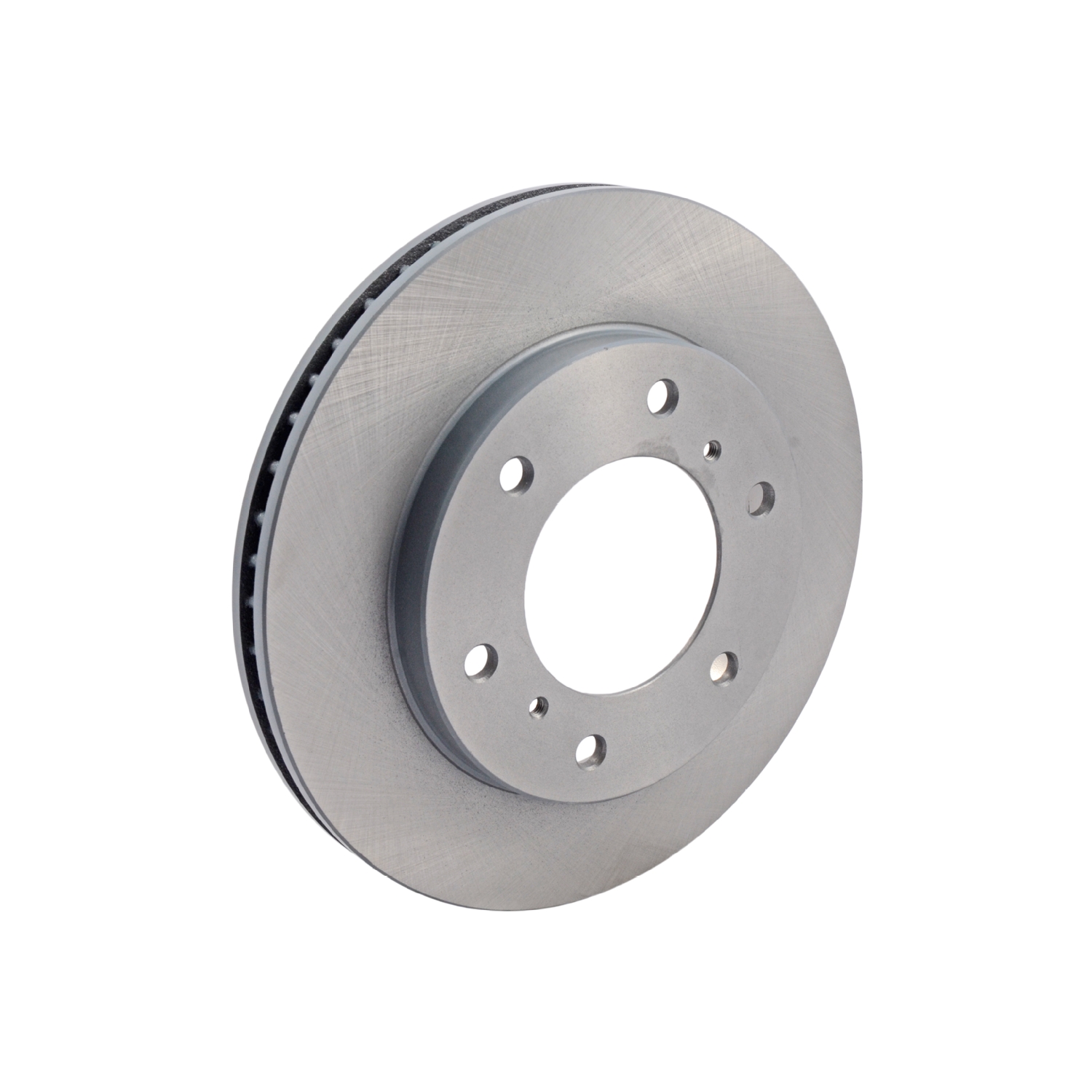

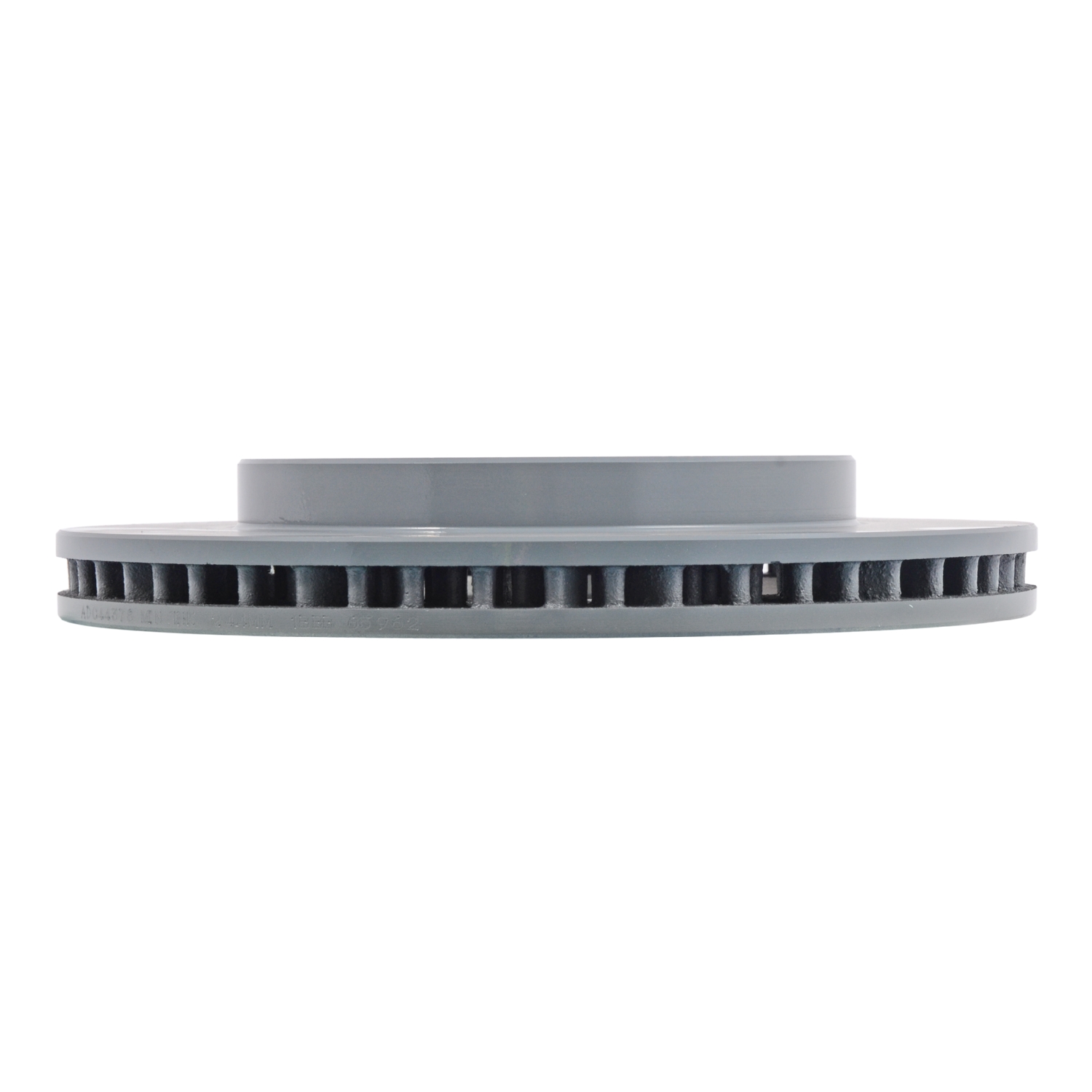

Front Axle Brake Disc
BLUE PRINT ADC44378
Front Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
26mm
Rim Hole Number
6-Hole
Thickness [mm]
46mm
Outer Diameter [mm]
290mm
Bolt Hole Circle Ø [mm]
140mm
Surface
Coated
Brake Disc Type
internally vented
Fitting Position
Front Axle
Minimum thickness [mm]
24.4mm
Centering Diameter [mm]
94mm
Weight [kg]
6.5kg
Observe service information
EAN / Barcode
5050063443783
OEM Part Numbers
