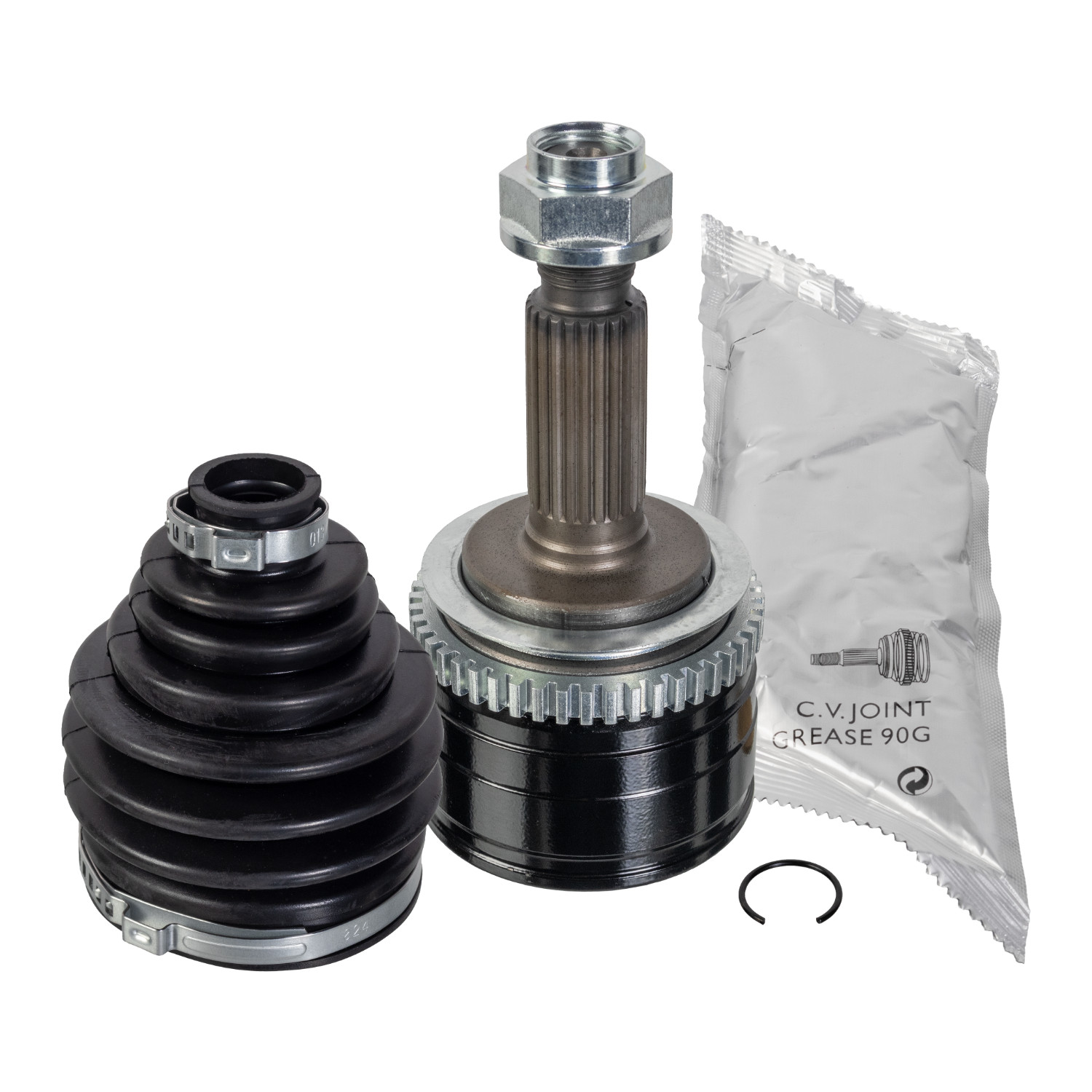

Front Axle Right, Front Axle Left, Wheel Side Joint Kit, drive shaft
BLUE PRINT ADBP890008
Front Axle Right, Front Axle Left, Wheel Side
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Length [mm]
158mm
Outer Diameter [mm]
75mm
External Thread Size
M20 x 1,5
External Toothing wheel side
24
Internal Toothing wheel side
21
Number of Teeth, ABS ring
48
Fitting Position
Front Axle Right
Fitting Position
Front Axle Left
Fitting Position
Wheel Side
Sealing Ring Diameter [mm]
52.5mm
Weight [kg]
1.68kg
EAN / Barcode
5057746291891
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
OEM Part Numbers
- HYUNDAI 49500-0X004
- HYUNDAI 49500-0X004 SK1
- HYUNDAI 49500-0X014
- HYUNDAI 49500-0X014 SK1
Vehicle Fitments
