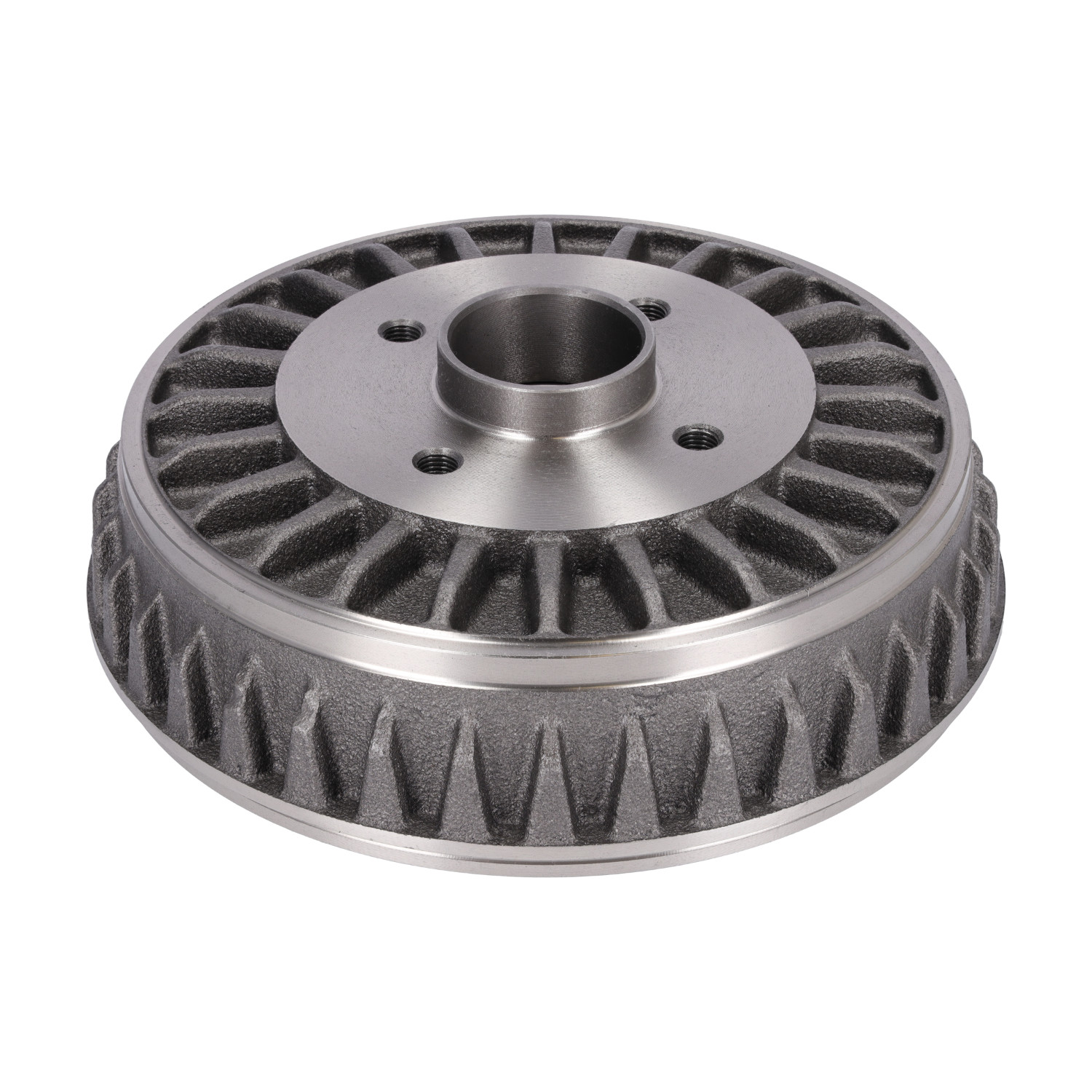

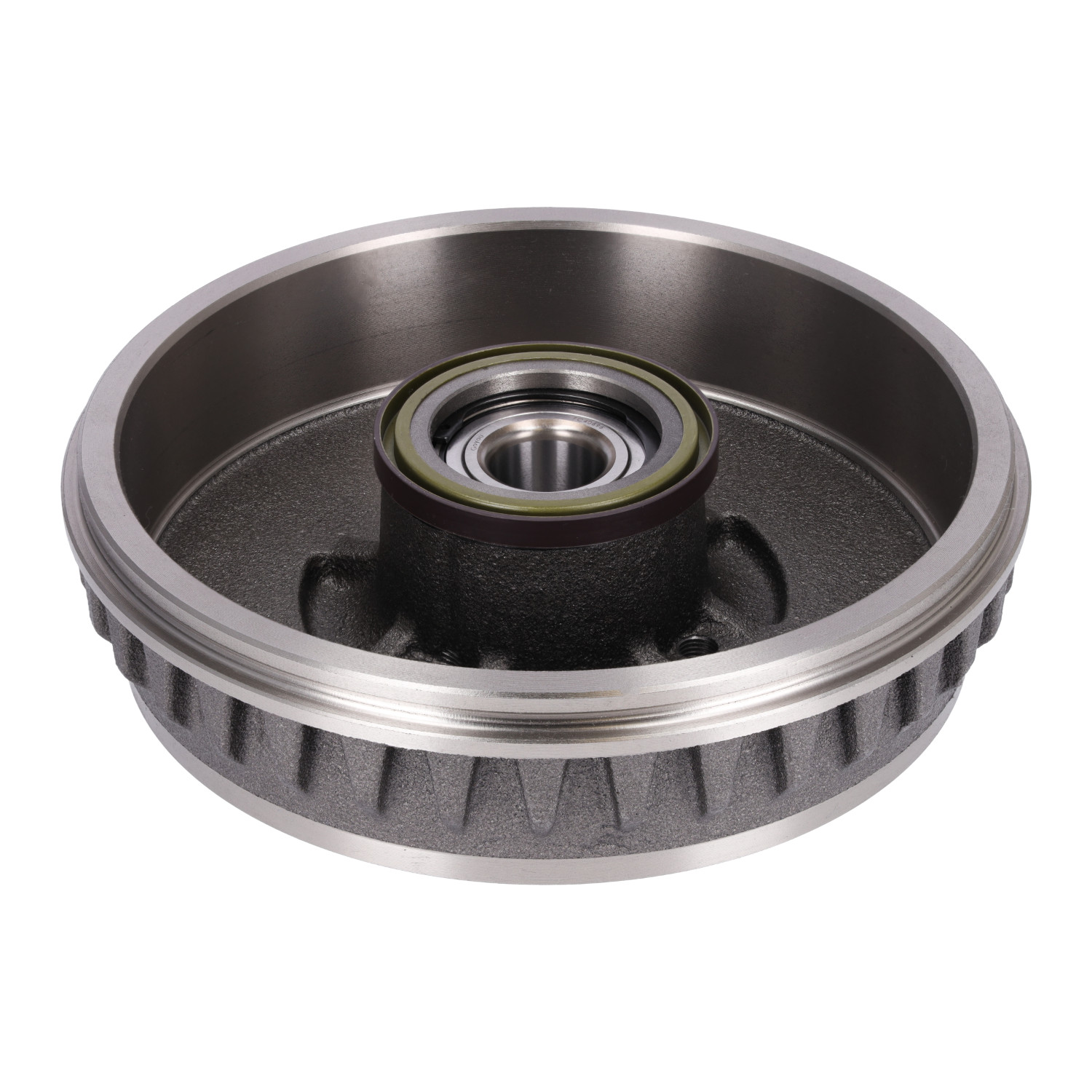

Rear Axle Left, Rear Axle Right Brake Drum
BLUE PRINT ADBP470023
Rear Axle Left, Rear Axle Right
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Rim Hole Number
4-Hole
Width [mm]
50mm
Thickness [mm]
74mm
Inner Diameter [mm]
229mm
Outer Diameter [mm]
261mm
Bolt Hole Circle Ø [mm]
100mm
max. brake drum reboring dimension [mm]
228.5mm
Supplementary Article/Info 2
with wheel bearing
Fitting Position
Rear Axle Left
Fitting Position
Rear Axle Right
Centering Diameter [mm]
61.9mm
Weight [kg]
8.35kg
Supplementary Article/Info 2
with ABS sensor ring
EAN / Barcode
5057746313890
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
OEM Part Numbers
- LADA 432001501R
- MERCEDES-BENZ A415 423 01 01
- MERCEDES-BENZ 415 423 01 01
- NISSAN 43200-00Q0K
- NISSAN 43200-00Q1L
- RENAULT 43 20 005 05R
- RENAULT 43 20 015 01R
- RENAULT 43 20 041 97R
- RENAULT 43 20 055 73R
- RENAULT 43 20 072 12R
- RENAULT 43 20 073 20R
- RENAULT 43 20 092 34R
- RENAULT 43 20 207 17R
- RENAULT 43 20 218 72R
- RENAULT 43 20 243 42R
- RENAULT 43 20 314 39R
- RENAULT 43 20 351 24R
- RENAULT 43 20 375 63R
- RENAULT 43 20 397 45R
- RENAULT 60 01 548 985
- RENAULT 60 01 550 813
- RENAULT 82 00 381 151
- DACIA 43 20 005 05R
- DACIA 43 20 015 01R
- DACIA 43 20 041 97R
- DACIA 43 20 055 73R
- DACIA 43 20 072 12R
- DACIA 43 20 073 20R
- DACIA 43 20 092 34R
- DACIA 60 01 548 985
- DACIA 60 01 550 813
- DACIA 82 00 381 151
- SAMSUNG 432007212R
- SAMSUNG 432009234R
Vehicle Fitments
