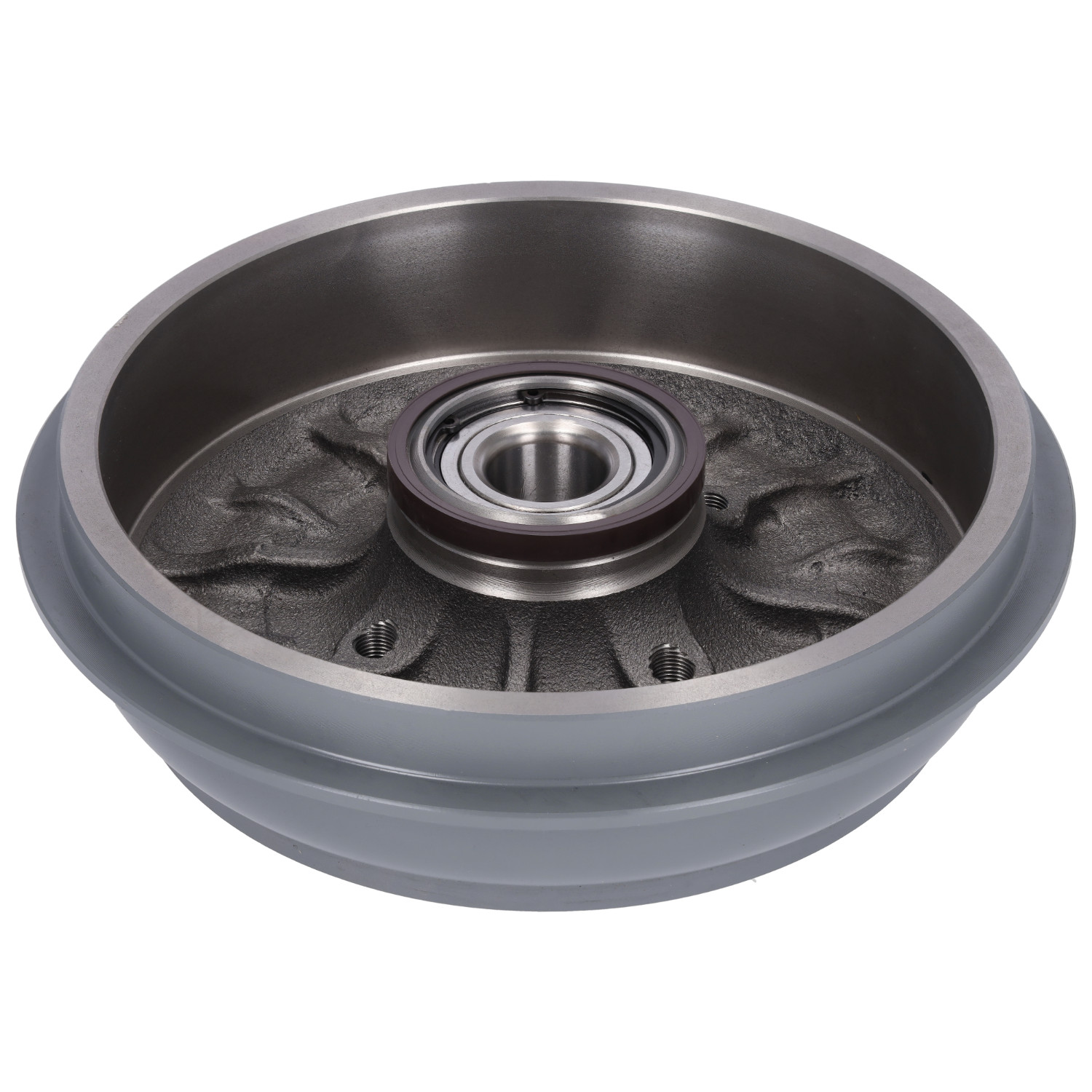

Rear Axle Brake Drum
BLUE PRINT ADBP470014
Rear Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Rim Hole Number
4-Hole
Width [mm]
51mm
Thickness [mm]
77mm
Inner Diameter [mm]
229mm
Outer Diameter [mm]
273mm
Bolt Hole Circle Ø [mm]
108mm
max. brake drum reboring dimension [mm]
230.1mm
Supplementary Article/Info 2
with wheel bearing
Fitting Position
Rear Axle
Centering Diameter [mm]
62.2mm
Weight [kg]
7.9kg
EAN / Barcode
5057746188290
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
Vehicle Fitments
