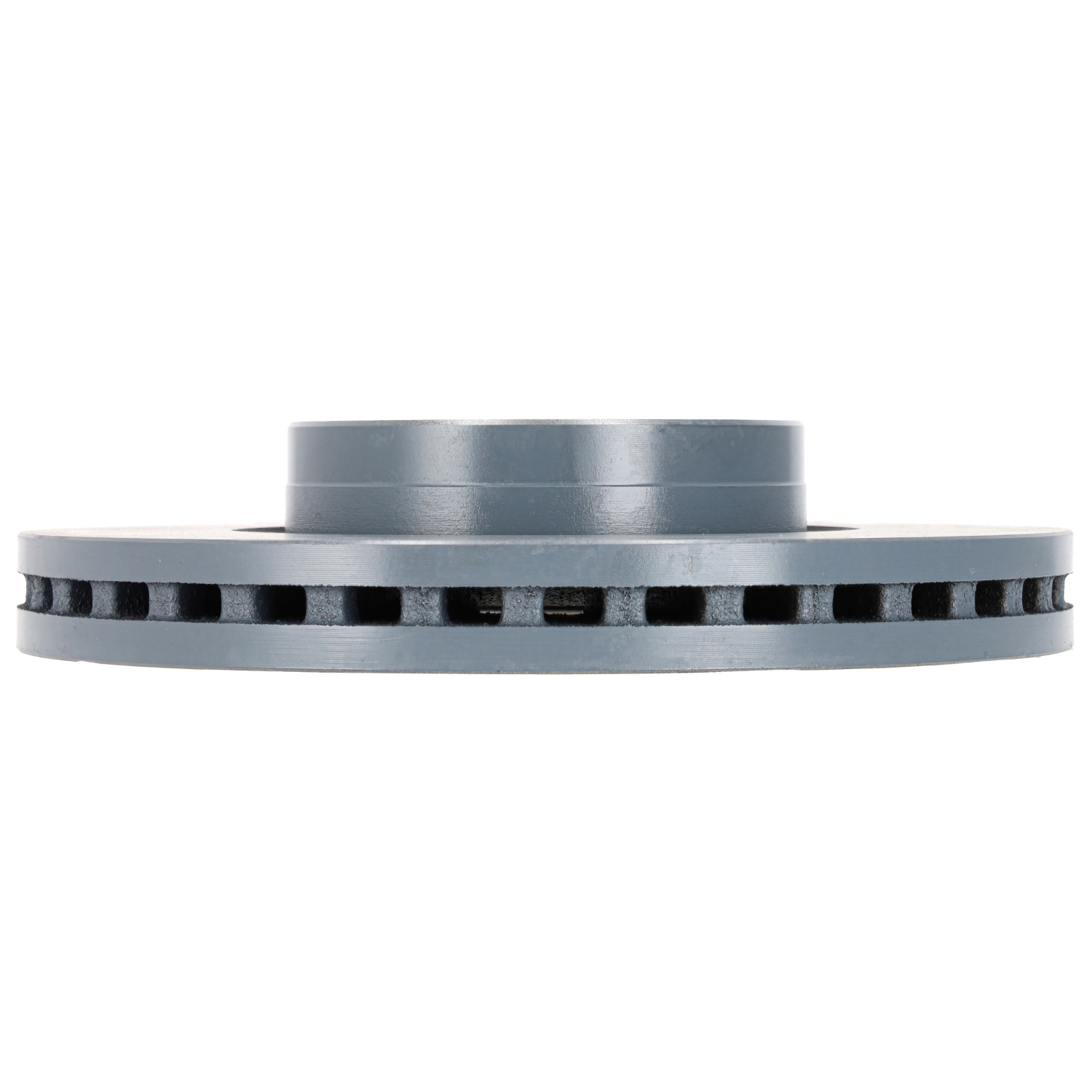

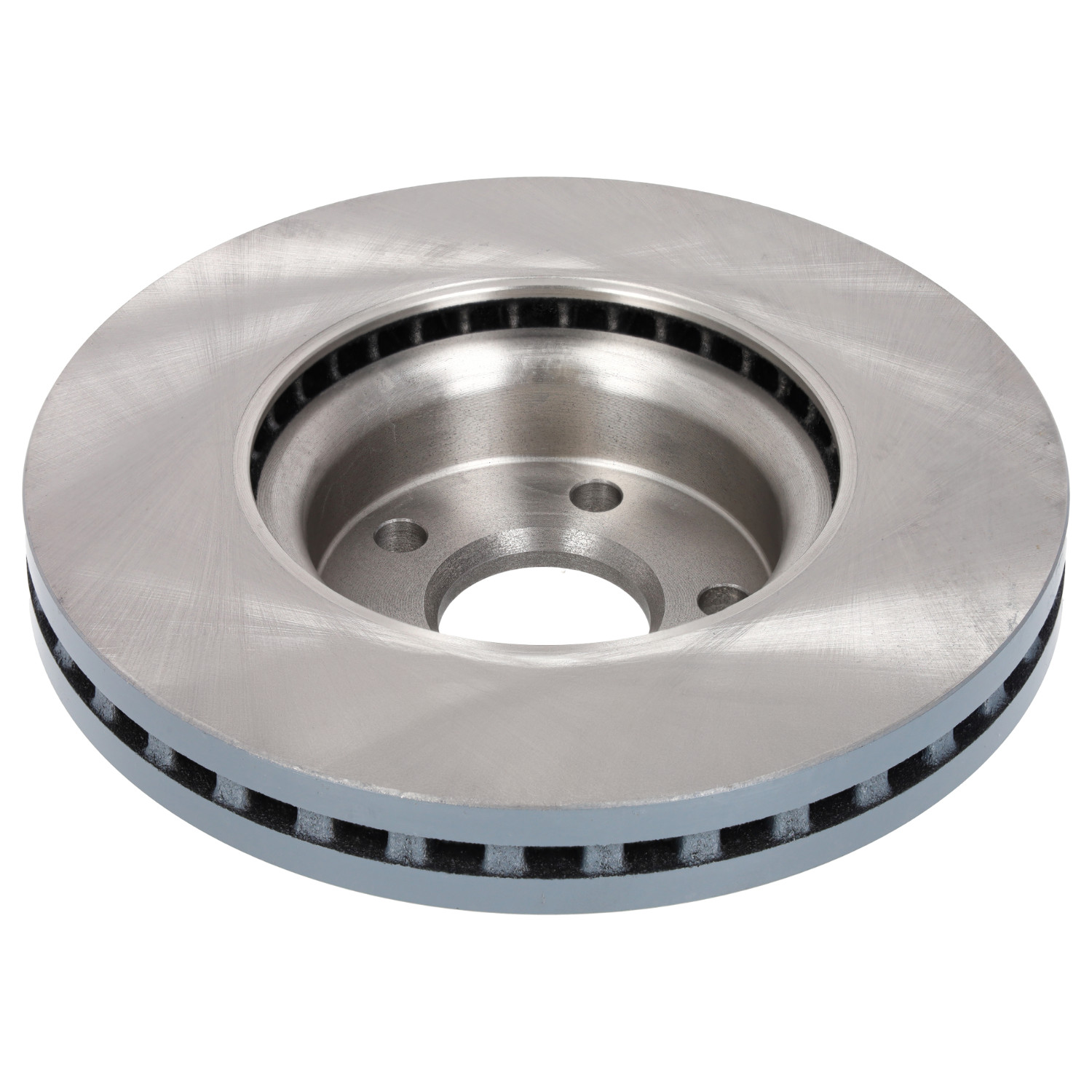

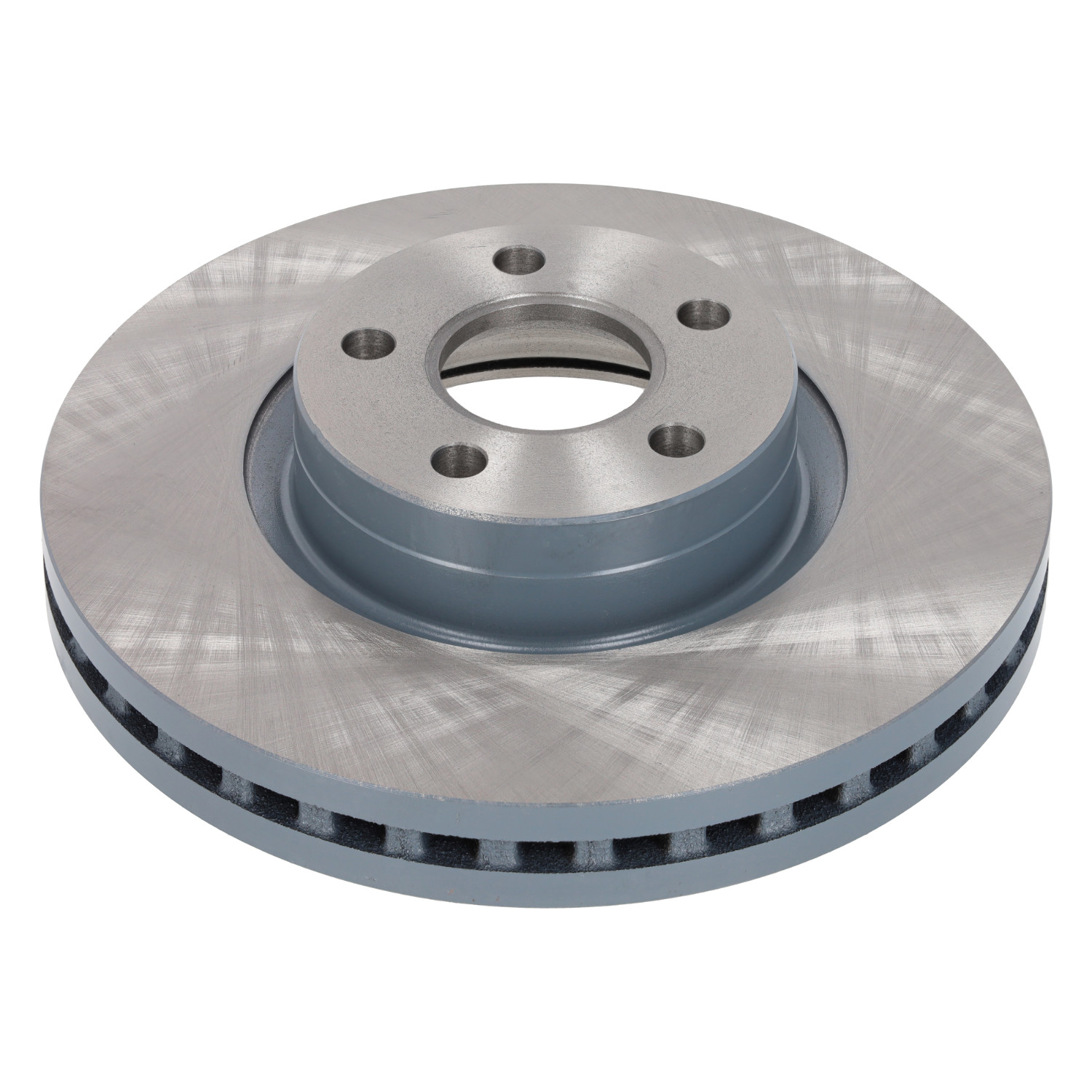

Front Axle Brake Disc
BLUE PRINT ADBP430227
Front Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
25mm
Rim Hole Number
5-Hole
Thickness [mm]
49mm
Outer Diameter [mm]
300mm
Bolt Hole Circle Ø [mm]
108mm
Surface
Coated
Brake Disc Type
internally vented
Fitting Position
Front Axle
Minimum thickness [mm]
23mm
Centering Diameter [mm]
63.5mm
Weight [kg]
8.4kg
Observe service information
EAN / Barcode
5057746476090
OEM Part Numbers
- FORD 2 252 901
- FORD 2 252 903
- FORD 2 279 487
- FORD 2 279 488
- FORD MOTOR COMPANY KV6C-1125-CB
- FORD MOTOR COMPANY KV6C-1125-CC
- FORD MOTOR COMPANY KV6C-1125-DB
- FORD MOTOR COMPANY KV6C-1125-DC
