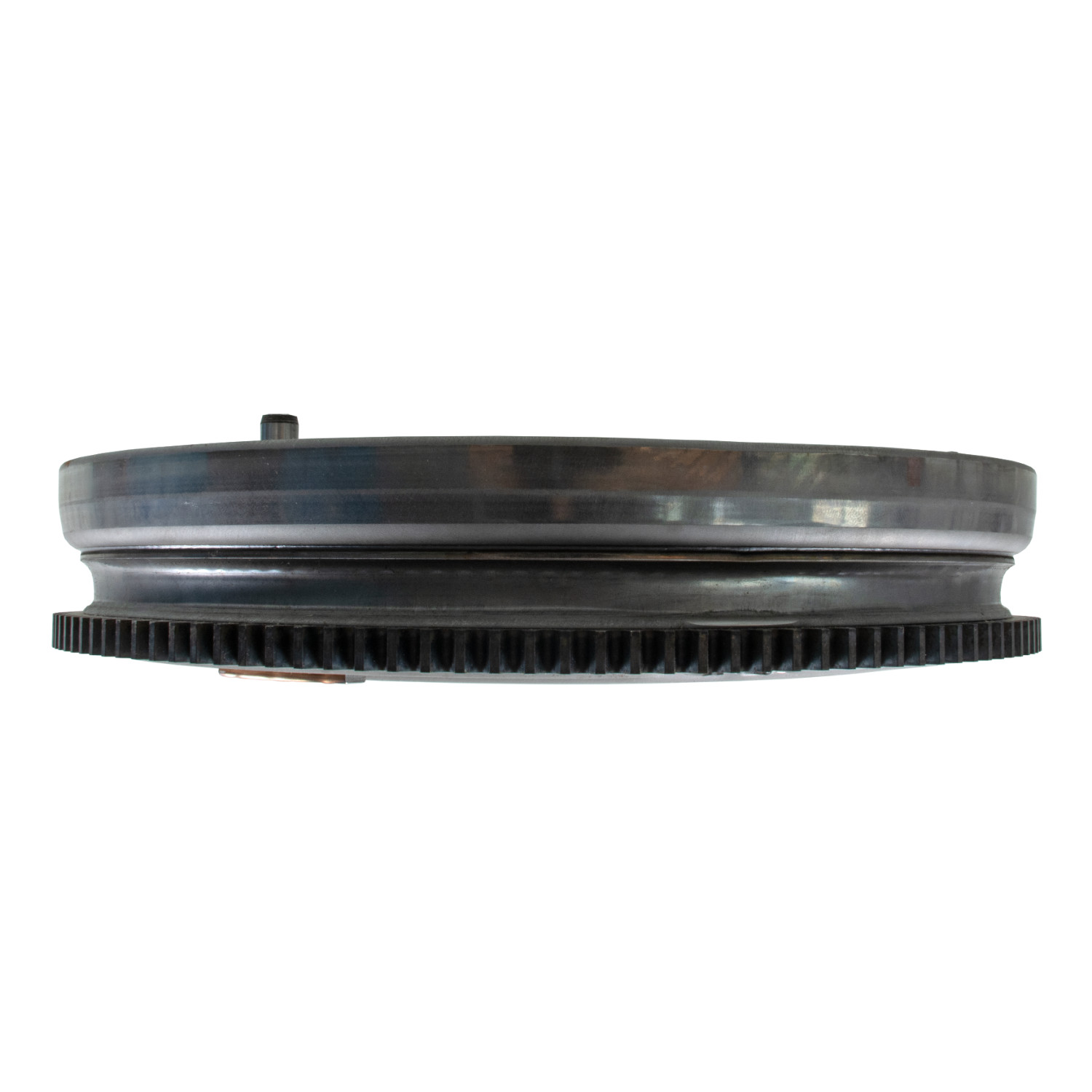

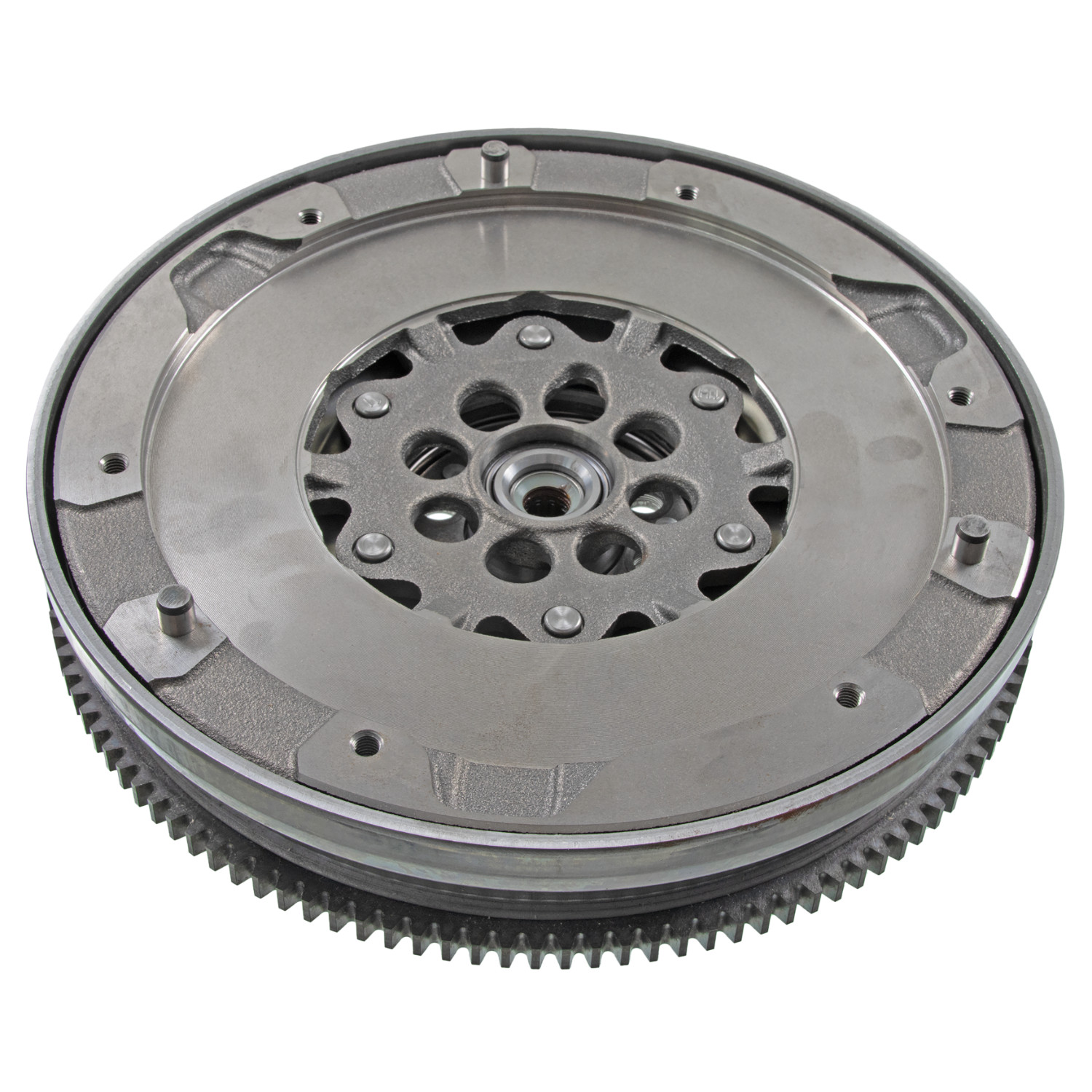

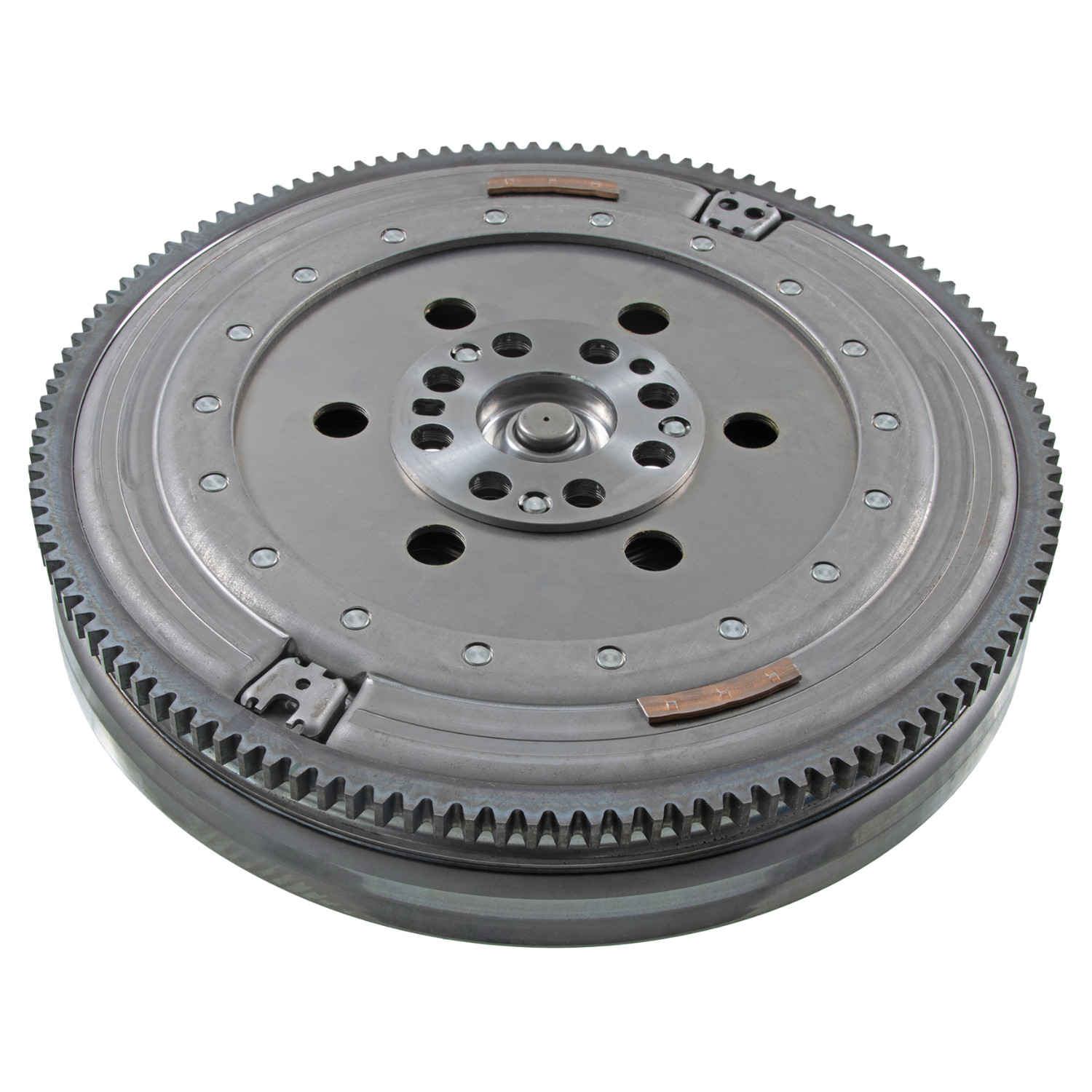

Flywheel
BLUE PRINT ADBP350012
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Related Parts / Accessories:
- 1 x ADBP780016 Screw Set, flywheel
Specifications
Hub Inner Diameter [mm]
42.03mm
Hub mounting bore diameter [mm]
12.8mm
Hub Outer Diameter [mm]
96mm
Pitch Circle Diameter, hub [mm]
72mm
Number of hub mounting bores
8mm
Pitch Circle Diameter, clutch pressure plate [mm]
260mm
Inner Diameter Tread [mm]
154mm
Clutch Pressure Plate Outer Diameter [mm]
244mm
Number of clutch pressure plate mounting bores
6mm
Number of Teeth
122
Weight [kg]
15.324kg
Observe service information
EAN / Barcode
5057746285364
OEM Part Numbers
- BMW 21 20 4 588 471
- BMW 21 20 7 594 958
- BMW 21 20 7 616 014
- BMW 21 20 7 629 269
- BMW 21 20 7 638 349
- BMW 21 20 7 647 334
- BMW 21 20 8 638 897
Product Downloads / PDF Files
Vehicle Fitments
