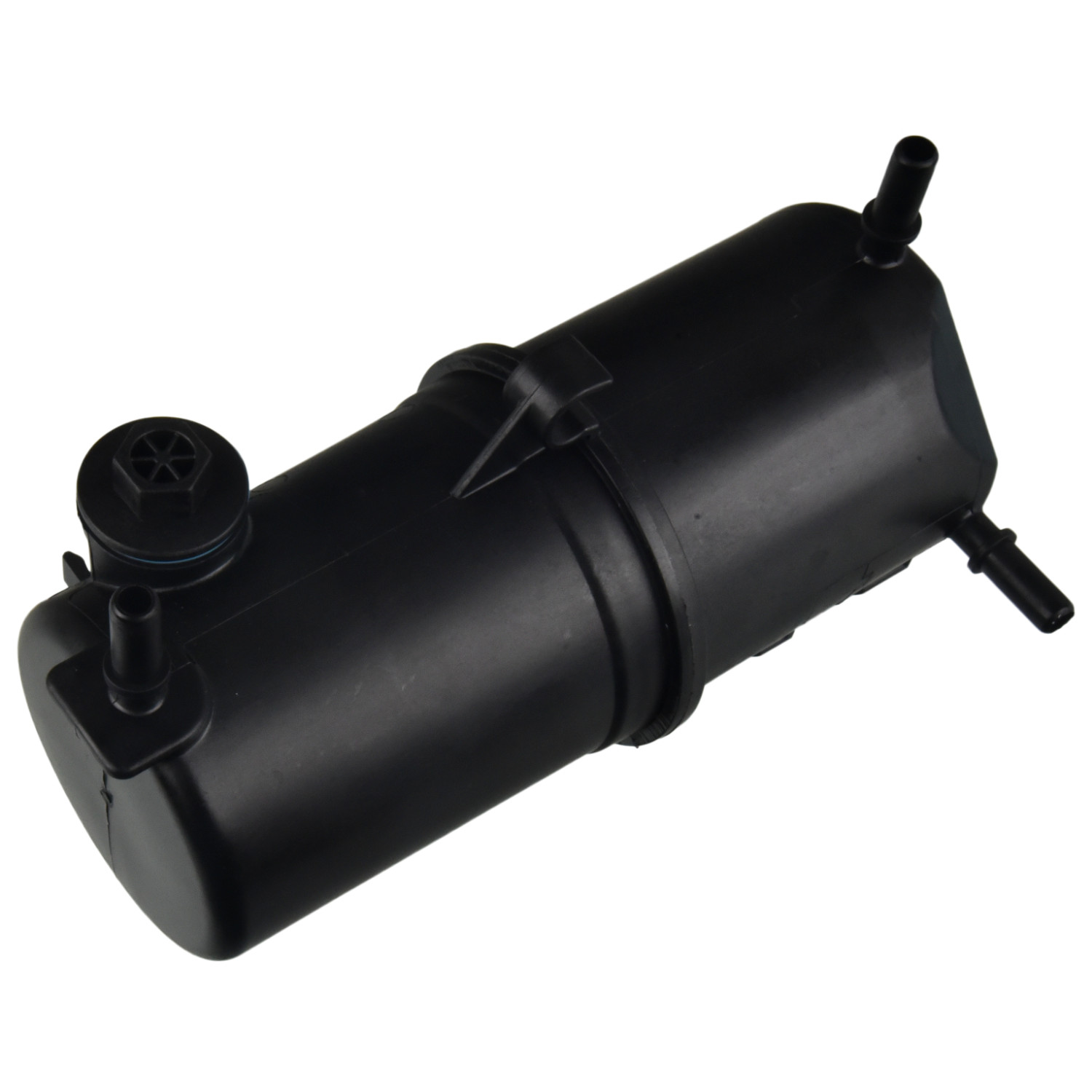

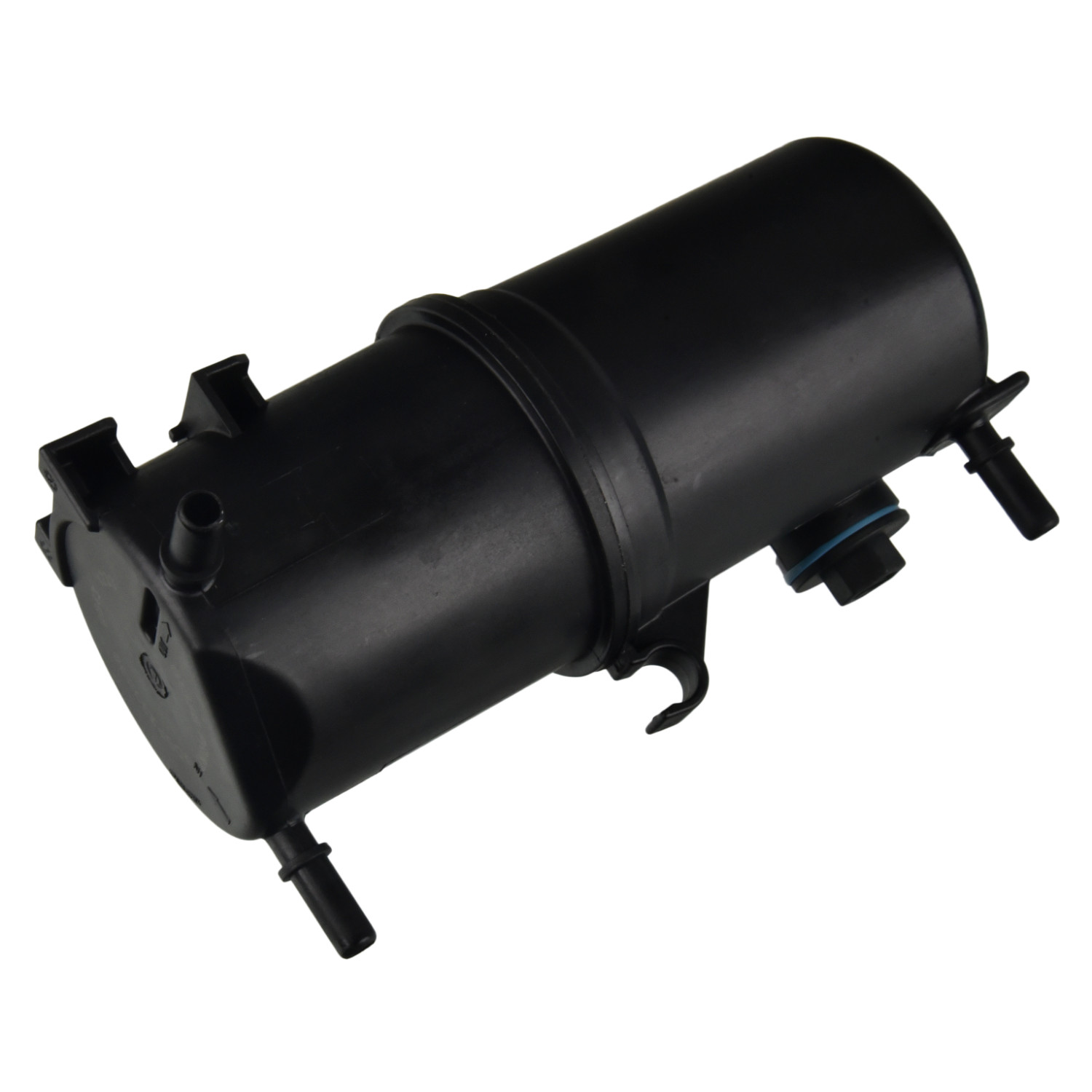

Fuel Filter
BLUE PRINT ADBP230039
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Filter type
In-Line Filter
Filter type
with connection for water sensor
Housing material
Plastic
Length [mm]
221mm
Outer Diameter [mm]
95mm
Pipe Diameter [mm]
10mm
Gasket inside diameter [mm]
26.5mm
Gasket outside diameter [mm]
32.3mm
Weight [kg]
0.515kg
Supplementary Article/Info 2
with seal ring
Observe service information
EAN / Barcode
5057746287184
Guarantee / Warranty
The Blue Print Manufacturer Guarantee
In order to underline our high product quality standards, we provide a 3-Year Manufacturer Guarantee for all of our replacement parts - exceeding the statutory warranty. This is our commitment to quality, and is a real added value for everyone who trusts in Blue Print products - from wholesalers and workshops to car and commercial vehicle drivers.
OEM Part Numbers
- VW 2H0 127 401 D
- VW 2H0 127 401 G
- VW 2H6 127 401 E
