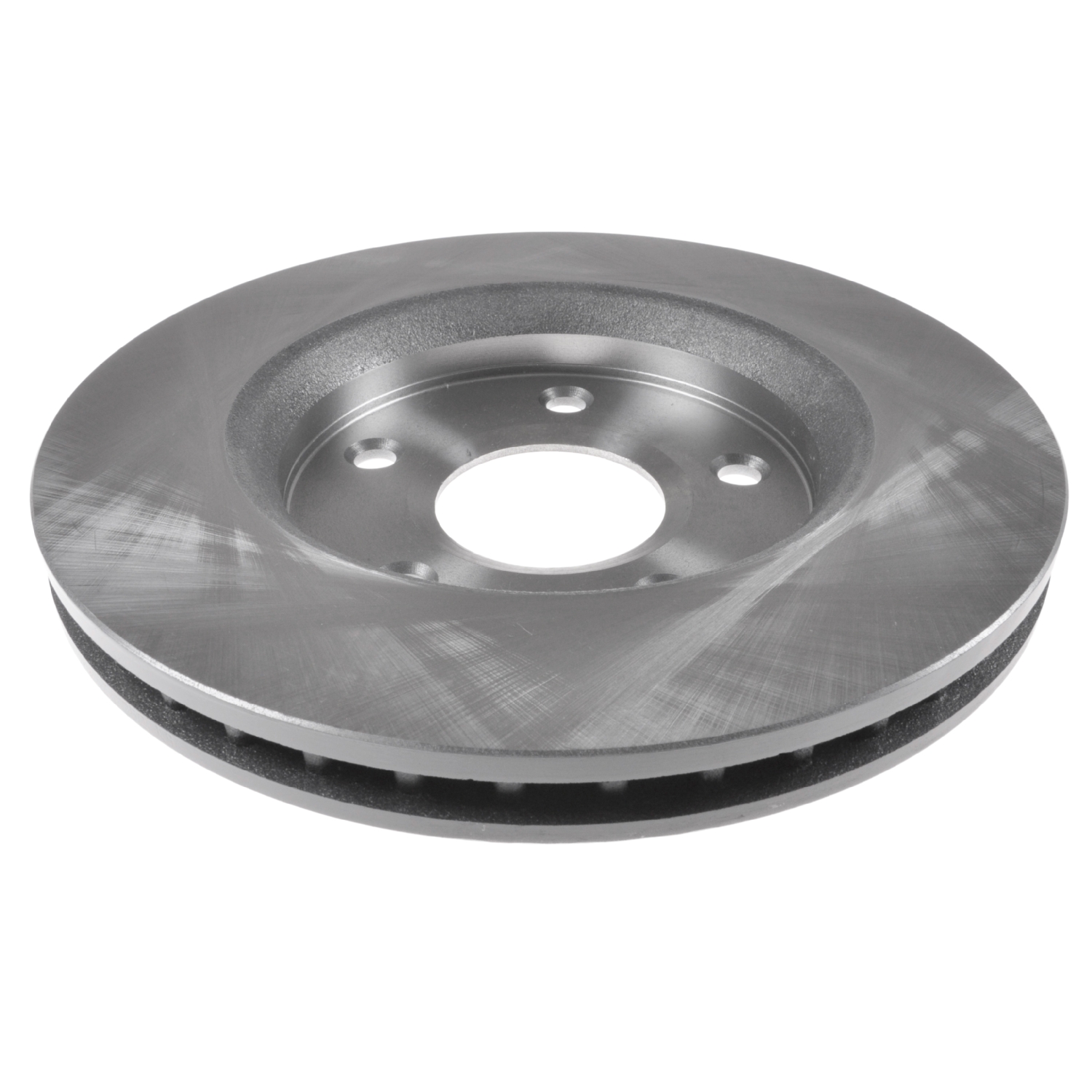

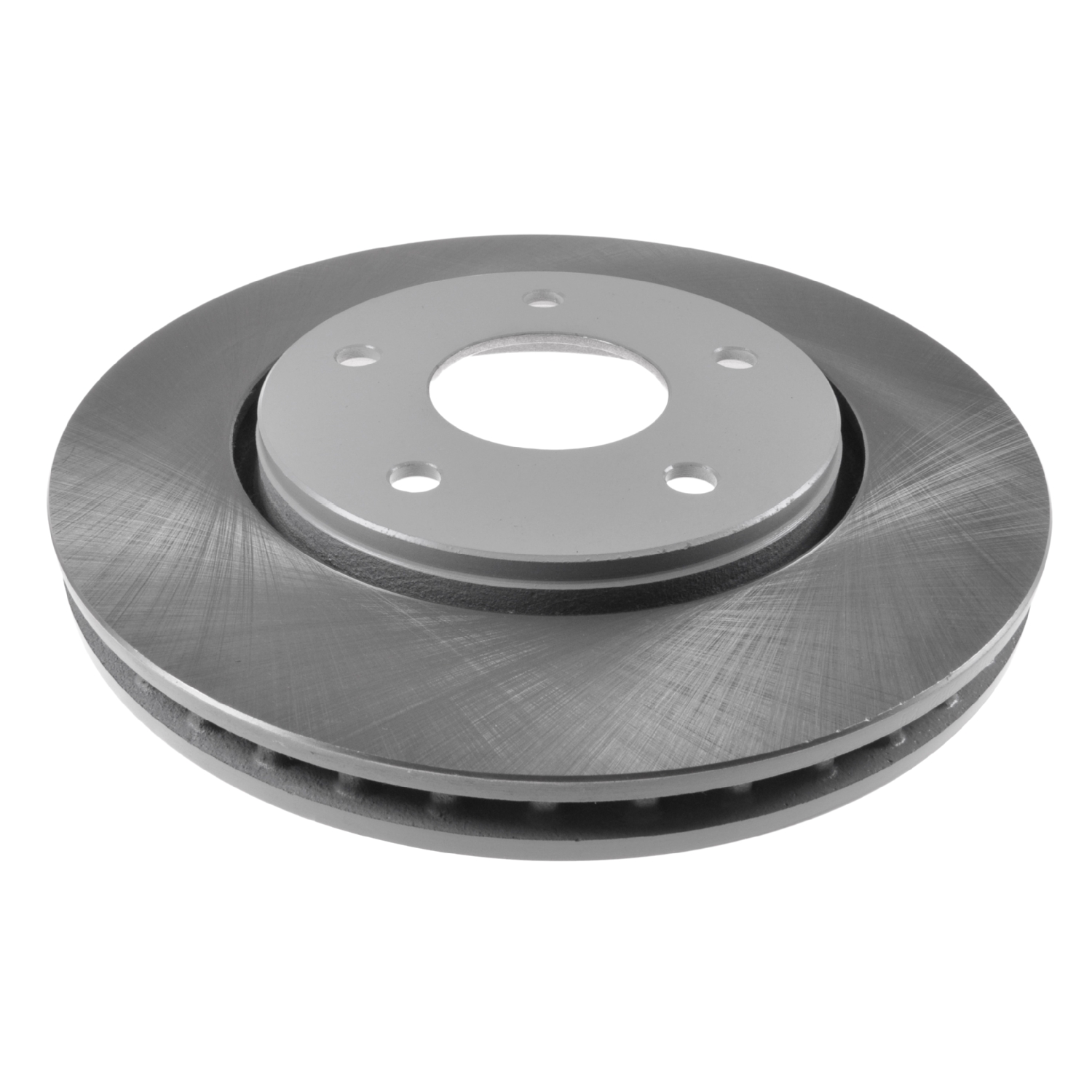

Front Axle Brake Disc
BLUE PRINT ADA104358
Front Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
28mm
Rim Hole Number
5-Hole
Thickness [mm]
37mm
Outer Diameter [mm]
302mm
Bolt Hole Circle Ø [mm]
127mm
Surface
Coated
Brake Disc Type
internally vented
Fitting Position
Front Axle
Minimum thickness [mm]
26.4mm
Centering Diameter [mm]
73mm
Weight [kg]
9.75kg
Observe service information
EAN / Barcode
5050063059571
OEM Part Numbers
- CHRYSLER 04721995AA
- CHRYSLER 04721995AB
- CHRYSLER 04779783AA
- CHRYSLER 04779783AB
- CHRYSLER 4721995AA
- CHRYSLER 4721995AB
- CHRYSLER 4779783AA
- CHRYSLER 4779783AB
- DODGE 04721995AA
- DODGE 04721995AB
- DODGE 04779783AA
- DODGE 04779783AB
- DODGE 4721995AA
- DODGE 4721995AB
- DODGE 4779783AA
- DODGE 4779783AB
- FIAT K04721995AA
- FIAT K04721995AB
- FIAT K04779783AA
- FIAT K04779783AB
