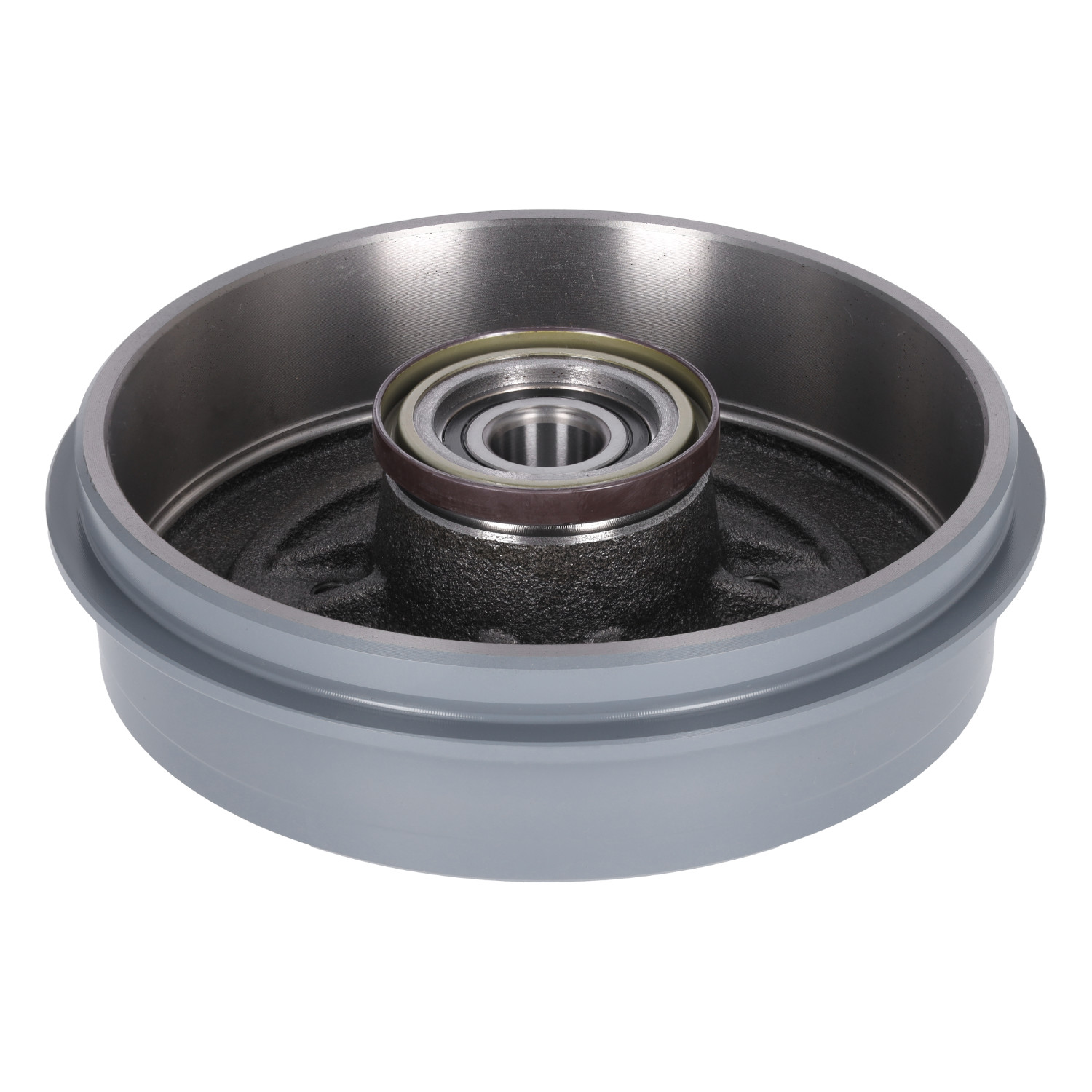

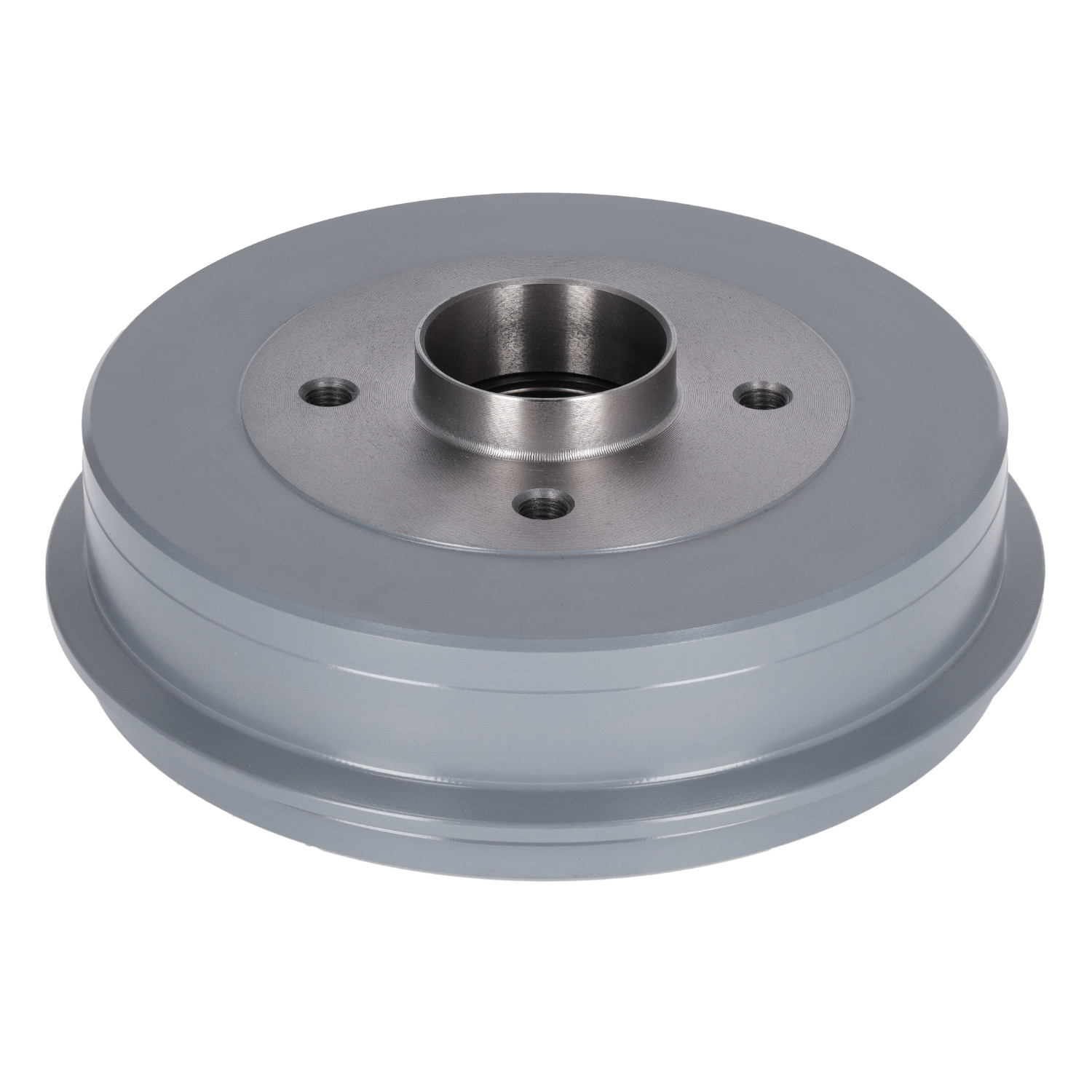

Rear Axle Brake Drum
FEBI BILSTEIN 176963
Rear Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Rim Hole Number
4-Hole
Width [mm]
46.7mm
Thickness [mm]
61mm
Outer Diameter [mm]
233.8mm
Bolt Hole Circle Ø [mm]
100mm
max. brake drum reboring dimension [mm]
204.45mm
Inner brake drum diameter [mm]
203mm
Fitting Position
Rear Axle
Centering Diameter [mm]
55.4mm
Weight [kg]
5.4kg
EAN / Barcode
4054224769638
OEM Part Numbers
- RENAULT 31 62 746 80R
- RENAULT 43 20 232 59R
